Engine Harness Routing - Right Front (LGX)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

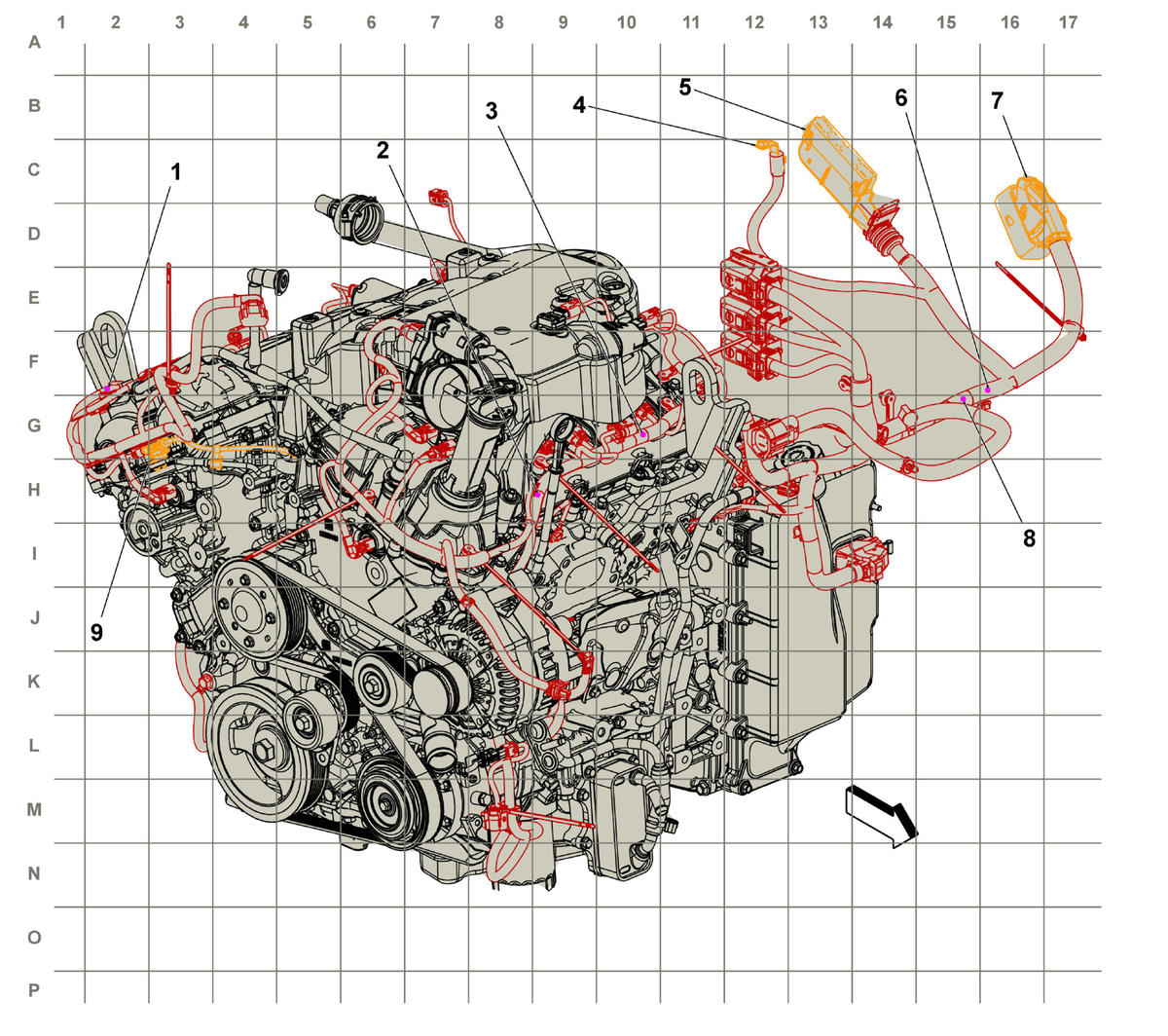

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. J127 Engine Harness |
| 2. J124 Engine Harness (LGX) |
| 3. J123 Engine Harness (LGX) |
| 4. X50D Fuse Block - Battery X50D Fuse Block - Battery X1 , or X50D Fuse Block - Battery X10 , or X50D Fuse Block - Battery X2 , or X50D Fuse Block - Battery X3 , or X50D Fuse Block - Battery X4 , or X50D Fuse Block - Battery X5 , or X50D Fuse Block - Battery X6 , or X50D Fuse Block - Battery X7 ((+)) , or X50D Fuse Block - Battery X8 ((+)) , or X50D Fuse Block - Battery X9 |
| 5. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 , or X50A Fuse Block - Underhood X2 , or X50A Fuse Block - Underhood X4 , or X50A Fuse Block - Underhood X5 |
| 6. J116 Engine Harness |
| 7. X112 Engine Wiring Harness to Body Wiring Harness X112 Engine Wiring Harness to Body Wiring Harness |
| 8. J117 Engine Harness |
| 9. X103 Engine Wiring Harness to Coolant Temperature Sensor Jumper Harness (LGX) X103 Engine Wiring Harness to Coolant Temperature Sensor Jumper Harness (LGX) |
