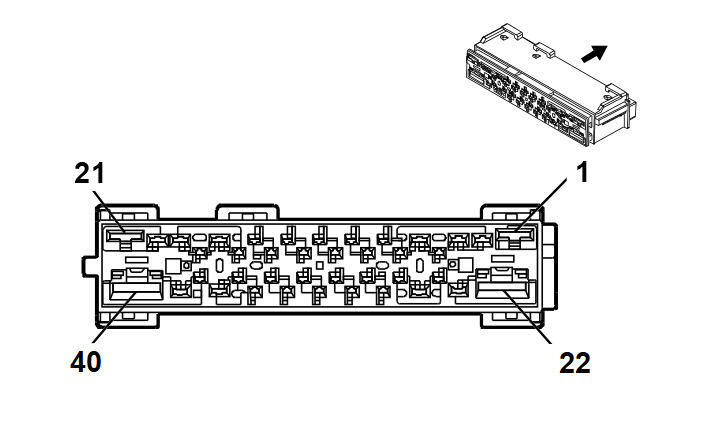

X50A Fuse Block - Underhood X5
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Forward Lamp Wiring Harness
- OEM Connector: 23161964
- Service Connector: 19333355
- Description: 40-Way F 1.5, 2.8, 6.3, 9.5 Kaizen Series(GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19332534 |
J-35616-2A (GY) |
J-38125-557 |
| II |
84962855 |
J-35616-4A (PU) |
J-38125-11A |
| III |
Not Available |
J-35616-2A (GY) |
J-38125-11A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
1 |
YE |
712 |
Left Headlamp Low Beam Control |
I |
|
| 13 |
1.5 |
BN/GY |
29 |
Horn Control |
III |
U05 |
| 14 |
- |
- |
- |
Not Occupied |
- |
- |
| 15 |
0.75 |
BN/VT |
2234 |
Front Fog Lamp Control |
I |
T3Y |
| 16 |
1 |
YE |
312 |
Right Headlamp Low Beam Control |
I |
|
| 17 - 19 |
- |
- |
- |
Not Occupied |
- |
- |
| 20 |
0.75 |
GY/VT |
228 |
Windshield Washer Pump Control |
II |
- |
| 21 - 38 |
- |
- |
- |
Not Occupied |
- |
- |
| 39 |
0.75 |
BU/VT |
392 |
Rear Window Washer Pump Control |
II |
|
| 40 |
- |
- |
- |
Not Occupied |
- |
- |
