Instrument Panel Harness Routing
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

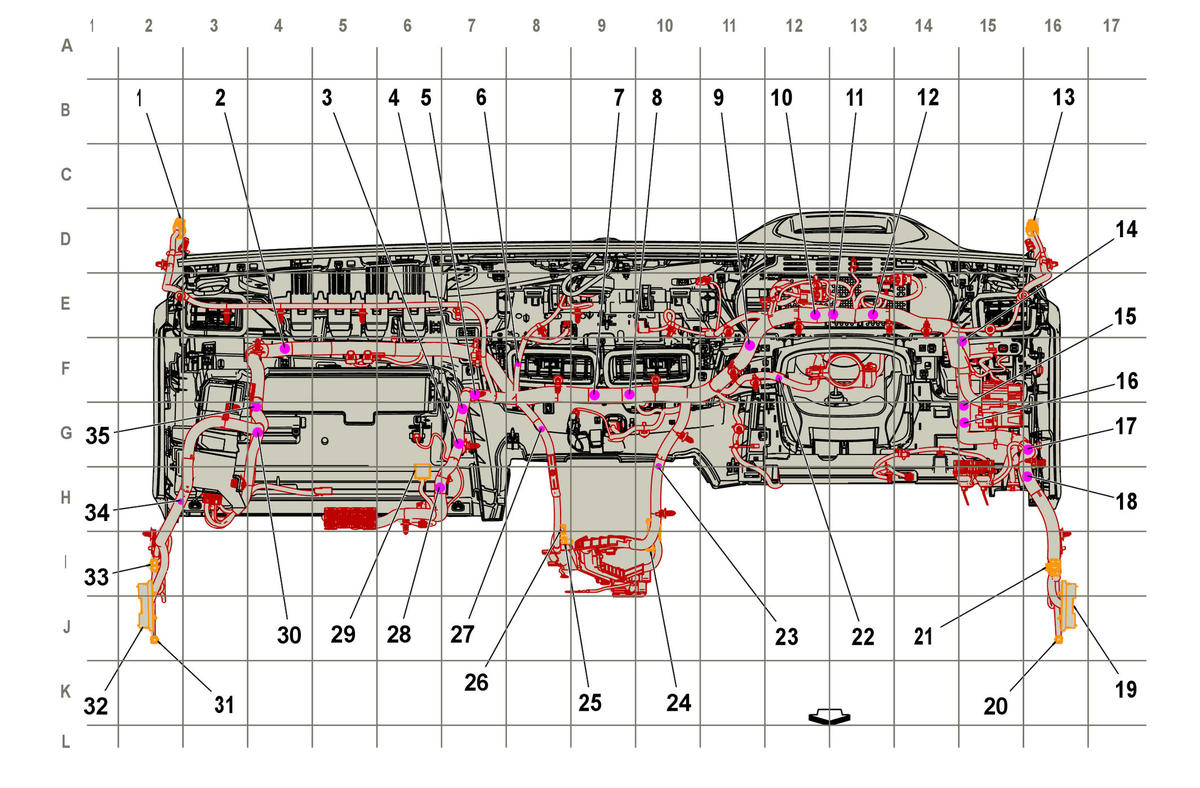

Instrument Panel Harness Routing
| Harness Name | Callout |
|---|---|
| X215 Instrument Panel Wiring Harness to Roof Wiring Harness X215 Instrument Panel Wiring Harness to Roof Wiring Harness | 1 |
| J227 Instrument Panel Wiring Harness | 2 |
| J218 Instrument Panel Wiring Harness | 3 |
| J228 Instrument Panel Wiring Harness | 4 |
| J221 Instrument Panel Wiring Harness | 5 |
| J211 Instrument Panel Wiring Harness | 6 |
| J225 Instrument Panel Wiring Harness | 7 |
| J223 Instrument Panel Wiring Harness | 8 |
| J206 Instrument Panel Wiring Harness | 9 |
| J232 Instrument Panel Wiring Harness | 10 |
| J219 Instrument Panel Wiring Harness | 11 |
| J306 Front Floor Console Wiring Harness | 12 |
| X214 Instrument Panel Wiring Harness to Roof Wiring Harness X214 Instrument Panel Wiring Harness to Roof Wiring Harness | 13 |
| J209 Instrument Panel Wiring Harness | 14 |
| J201 Instrument Panel Wiring Harness | 15 |
| J222 Instrument Panel Wiring Harness | 16 |
| J207 Instrument Panel Wiring Harness | 17 |
| J203 Instrument Panel Wiring Harness | 18 |
| X207 Instrument Panel Wiring Harness to Body Wiring Harness X207 Instrument Panel Wiring Harness to Body Wiring Harness | 19 |
| X230 Body Wiring Harness to Instrument Panel Wiring Harness X230 Body Wiring Harness to Instrument Panel Wiring Harness () | 20 |
| X211 Instrument Panel Wiring Harness to Body Wiring Harness X211 Instrument Panel Wiring Harness to Body Wiring Harness | 21 |
| J224 Instrument Panel Wiring Harness | 22 |
| J231 Instrument Panel Wiring Harness | 23 |
| X206 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness X206 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness | 24 |
| X200 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness X200 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness | 25 |
| X213 Front Floor Console Wiring Harness to Instrument Panel Wiring Harness X213 Front Floor Console Wiring Harness to Instrument Panel Wiring Harness | 26 |
| J230 Instrument Panel Wiring Harness | 27 |
| J220 Instrument Panel Wiring Harness | 28 |
| X265 Instrument Panel Wiring Harness to Air Conditioning Wiring Harness X265 Instrument Panel Wiring Harness to Air Conditioning Wiring Harness | 29 |
| J216 Instrument Panel Wiring Harness | 30 |
| X239 Body Wiring Harness to Instrument Panel Wiring Harness X239 Body Wiring Harness to Instrument Panel Wiring Harness | 31 |
| X209 Instrument Panel Wiring Harness to Body Wiring Harness X209 Instrument Panel Wiring Harness to Body Wiring Harness | 32 |
| X221 Body Wiring Harness to Instrument Panel Wiring Harness X221 Body Wiring Harness to Instrument Panel Wiring Harness | 33 |
| J233 Instrument Panel Wiring Harness | 34 |
| J226 Instrument Panel Wiring Harness | 35 |
