X211 Instrument Panel Wiring Harness to Body Wiring Harness

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

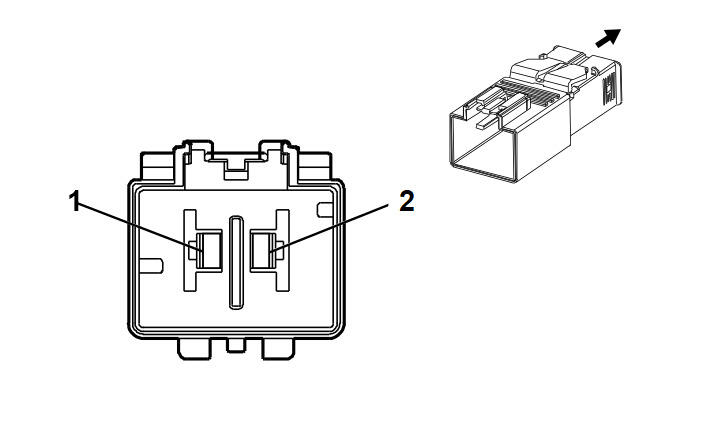

Connector Part Information Harness Type: Instrument Panel Wiring Harness OEM Connector: 35134698 Service Connector: Service by Harness - See Part Catalog Description: 2-Way F 9.5 MCON-LL Series (BK)	Connector Part Information Harness Type: Body Wiring Harness OEM Connector: 35134697 Service Connector: Service by Harness - See Part Catalog Description: 2-Way M 9.5 MCON-LL Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	J-35616-22 (RD)	No Tool Required
II	Not required	J-35616-21 (RD)	No Tool Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	10	RD / WH	342	I	-	Battery Positive Voltage Battery Positive Voltage	1	10	RD / WH	342	II	-
2	10	RD / BN	1742	I	-	Battery Positive Voltage Battery Positive Voltage	2	10	RD / BN	1742	II	-
