X221 Body Wiring Harness to Instrument Panel Wiring Harness
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

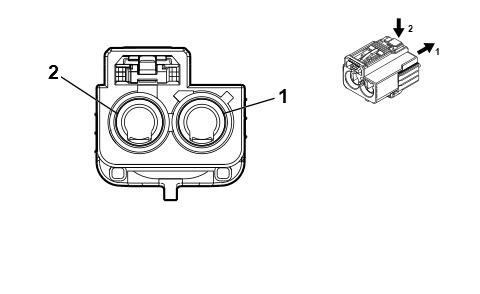

Connector Part Information
- Harness Type: Body Wiring Harness
- OEM Connector: 33351057
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way F Coax Type (BK)
|
Connector Part Information
- Harness Type: Instrument Panel Wiring Harness
- OEM Connector: 33351071
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way M Coax Type (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
- |
- |
6001 |
I |
- |
Coaxial Antenna RF Signal |
1 |
- |
- |
6001 |
II |
- |
| 2 |
- |
- |
6130 |
I |
- |
Coaxial Antenna XM Signal |
2 |
- |
- |
6130 |
II |
- |
