Body Harness Routing - Left Front of Passenger Compartment
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

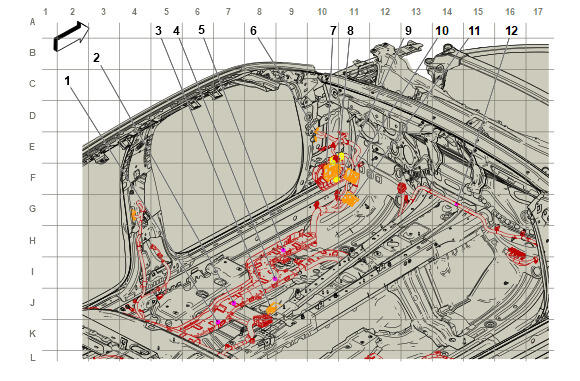

Body Harness Routing - Left Front of Passenger Compartment
| Harness Name | Callout |
|---|---|
| J329 Body Wiring Harness | 1 |
| J350 Body Wiring Harness | 2 |
| X321 Front Seat Wiring Harness - Driver to Body Wiring Harness X321 Front Seat Wiring Harness - Driver to Body Wiring Harness | 3 |
| J304 Body Wiring Harness | 4 |
| J302 Body Wiring Harness | 5 |
| X303 Front Side Door Door Wiring Harness - Driver to Body Wiring Harness X303 Front Side Door Door Wiring Harness - Driver to Body Wiring Harness (-1SF)X303 Front Side Door Door Wiring Harness - Driver to Body Wiring Harness (1SF) | 6 |
| X207 Instrument Panel Wiring Harness to Body Wiring Harness X207 Instrument Panel Wiring Harness to Body Wiring Harness | 7 |
| X211 Instrument Panel Wiring Harness to Body Wiring Harness X211 Instrument Panel Wiring Harness to Body Wiring Harness | 8 |
| X230 Body Wiring Harness to Instrument Panel Wiring Harness X230 Body Wiring Harness to Instrument Panel Wiring Harness () | 9 |
| X127 Forward Lamp Wiring Harness to Body Wiring Harness X127 Forward Lamp Wiring Harness to Body Wiring Harness | 10 |
| X125 Forward Lamp Wiring Harness to Body Wiring Harness X125 Forward Lamp Wiring Harness to Body Wiring Harness (-KL9)X125 Forward Lamp Wiring Harness to Body Wiring Harness (KL9) | 11 |
| J205 Body Wiring Harness | 12 |
