Rear Side Door Window Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

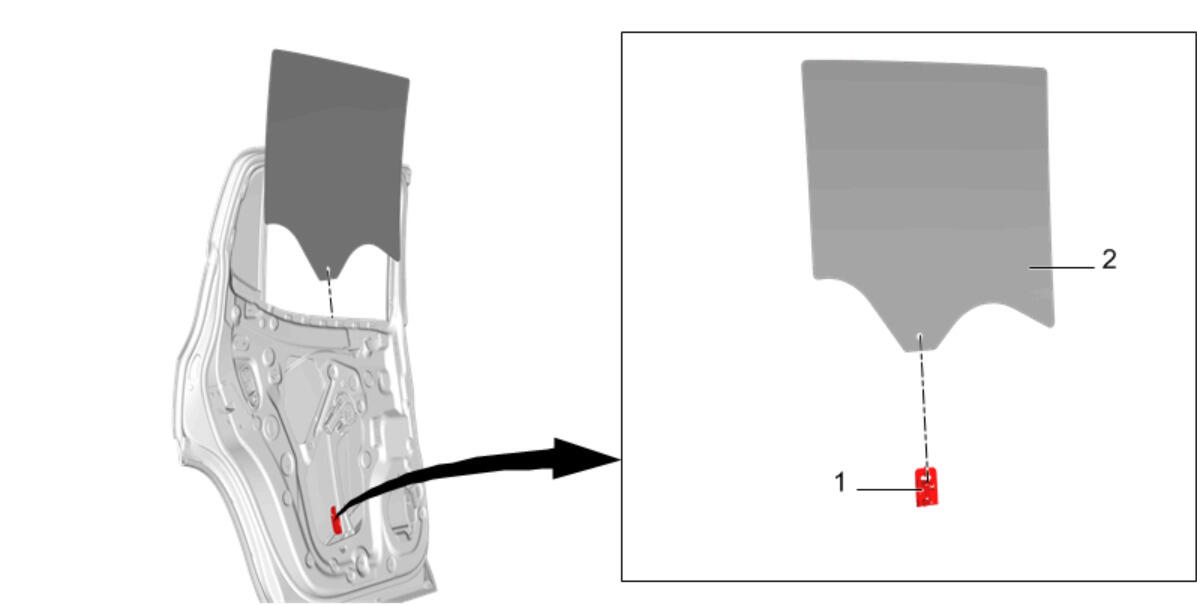

Fig 1: Rear Side Door Window
GM4395835Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Glass and Sheet Metal Handling Warning .

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedures
  1. Rear Side Door Window Channel Rear Retainer Replacement
  2. Rear Side Door Window Inner Sealing Strip Replacement
  3. Rear Side Door Window Belt Reveal Molding Replacement
1 Rear Side Door Window Regulator Guide

Procedure

  1. Use masking tape to tape the window in the full up position to the door frame.
  2. Using the proper tool, release the window regulator guide from the window sash.
2 Rear Side Door Window
  1. Lower the window regulator guide full down.
  2. Remove the masking tape from the window.
  3. Tilt the window downward in the front, pull up on the back and pull the window out from the door frame.
  4. Inspect the door window for proper operation before installing the door trim panel.
