Rear Side Door Window Inner Sealing Strip Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

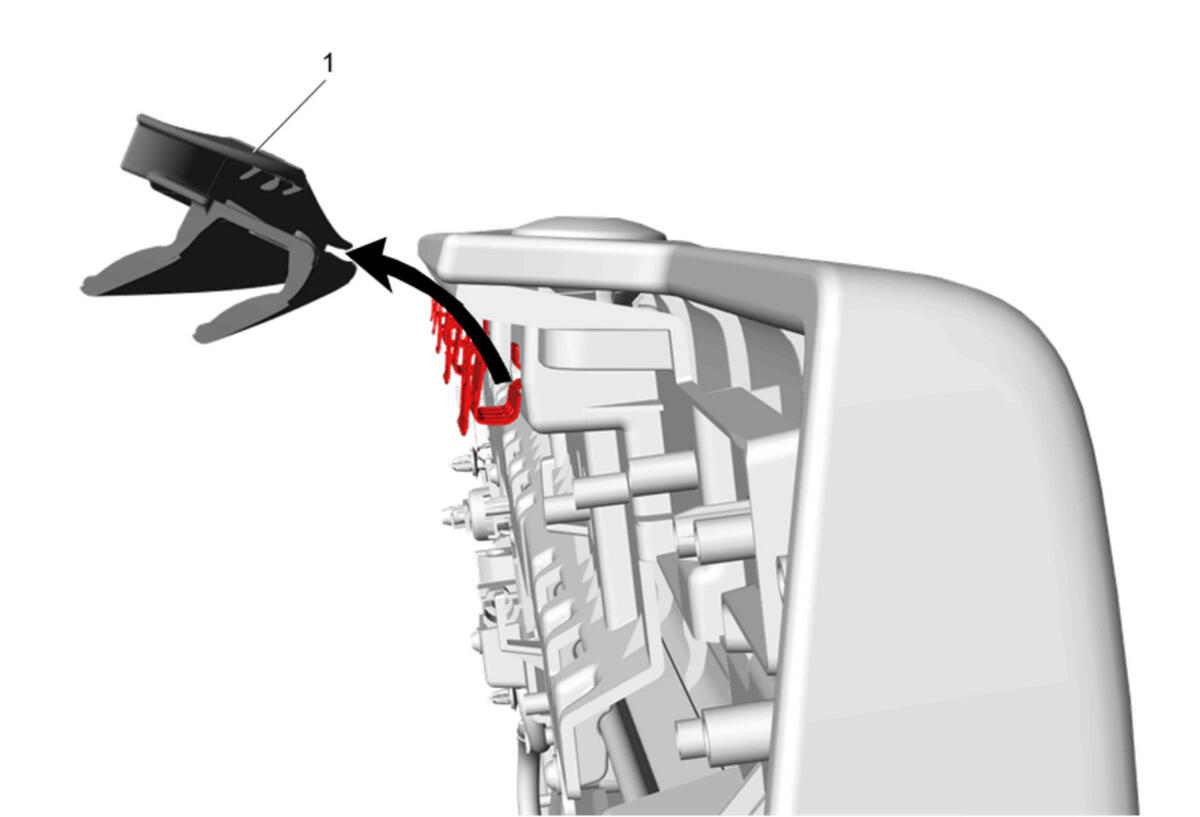

Fig 1: Rear Side Door Window Inner Sealing Strip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Place the rear door window in the full down position. Rear Side Door Trim Replacement
1	Rear Side Door Window Inner Sealing Strip Procedure Roll the rear side door window inner sealing strip from the rear side door trim belt line clips. Inspect the door window for proper operation.

Callout

Component Name

Preliminary Procedures

Place the rear door window in the full down position.
Rear Side Door Trim Replacement

Rear Side Door Window Inner Sealing Strip

Procedure

Roll the rear side door window inner sealing strip from the rear side door trim belt line clips.
Inspect the door window for proper operation.
