Rear Side Door Window Channel Rear Retainer Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

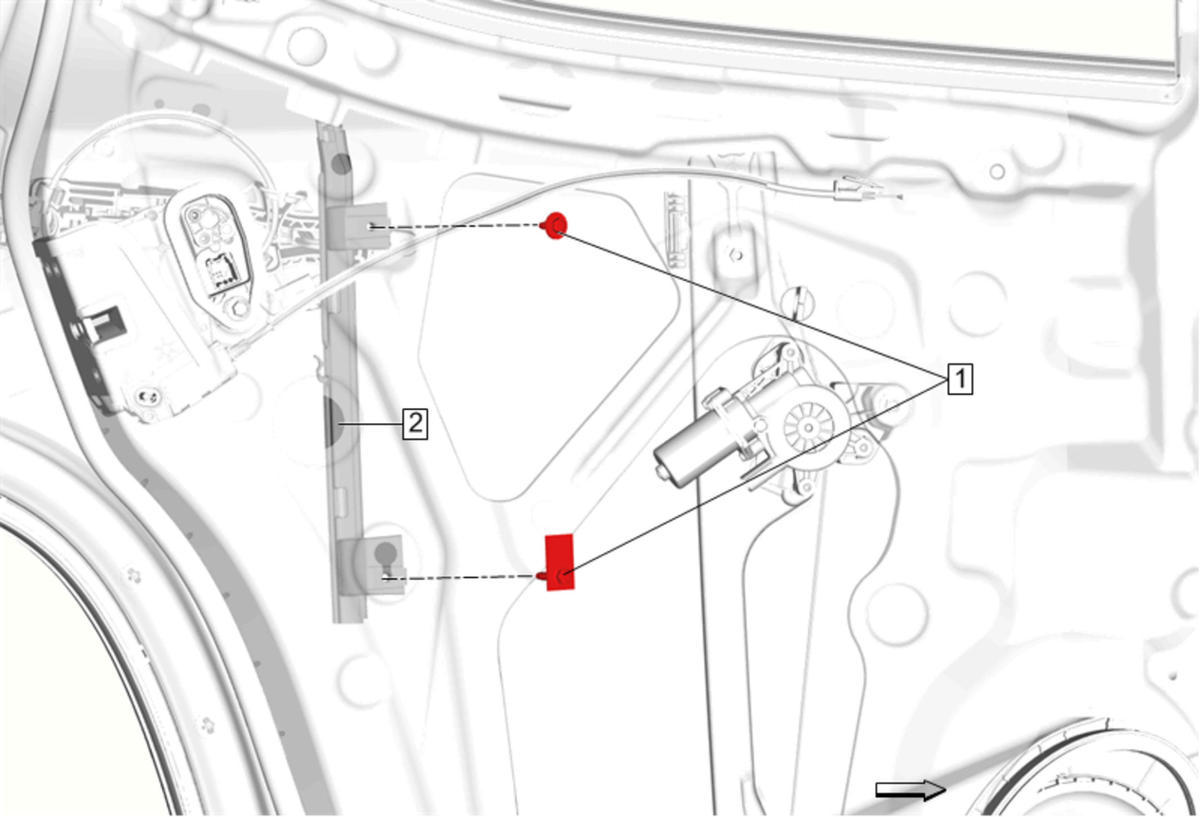

Fig 1: Rear Side Door Window Channel Rear Retainer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Place the rear side door window in the full up position. Rear Side Door Water Deflector Replacement
1	Rear Side Door Window Channel Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Rear Side Door Window Channel Rear Retainer Procedure Inspect the door window for proper operation before installing the door trim panel.
