Rear Side Door Window Belt Reveal Molding Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

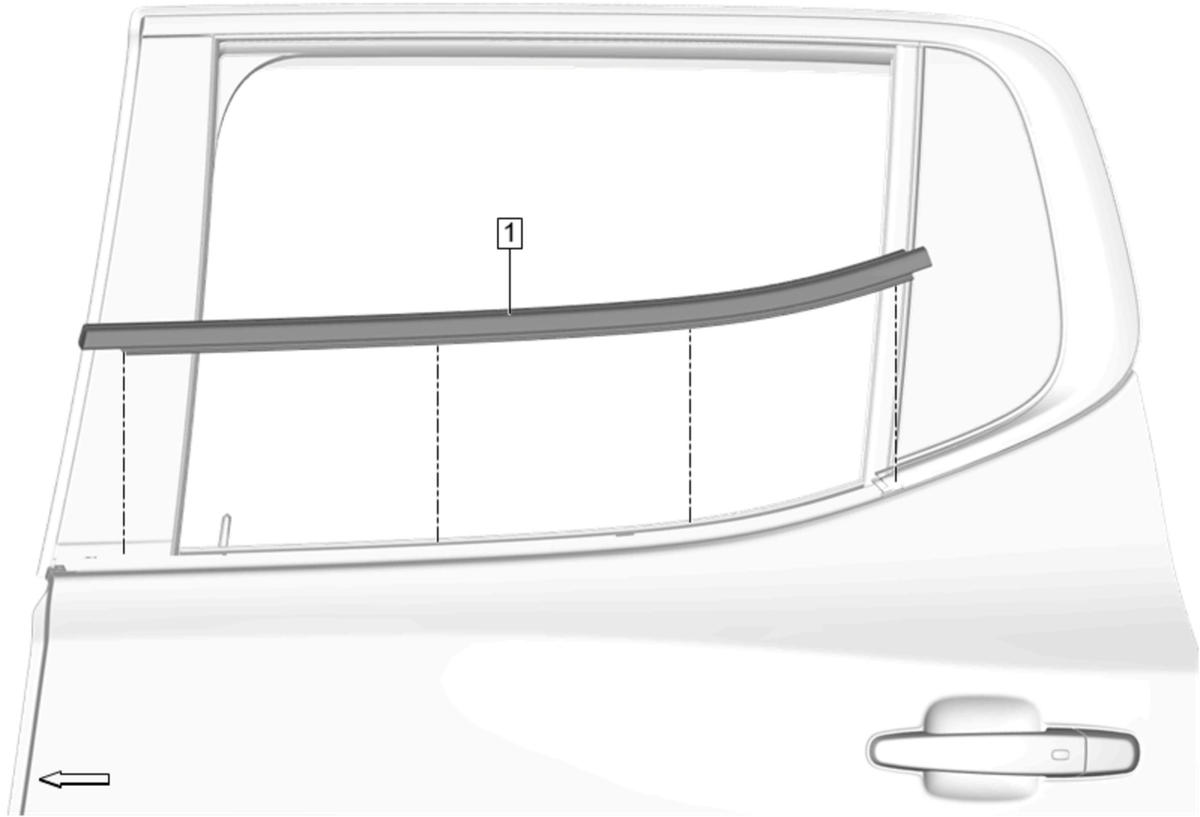

Fig 1: Rear Side Door Window Belt Reveal Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Window Belt Reveal Molding Procedure Place the rear side door window in the down position. Tape off the lower window frame to prevent damage to the door. Using the appropriate tool, lift upward on one end of the reveal molding. Work the reveal molding down the door flange until it fully releases. Install the sealing strip to the flange of the door and push downward until fully seated. Inspect the door window for proper operation.

Callout

Component Name

Rear Side Door Window Belt Reveal Molding

Procedure

Place the rear side door window in the down position.
Tape off the lower window frame to prevent damage to the door.
Using the appropriate tool, lift upward on one end of the reveal molding. Work the reveal molding down the door flange until it fully releases.
Install the sealing strip to the flange of the door and push downward until fully seated.
Inspect the door window for proper operation.
