Front Lower Grille Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

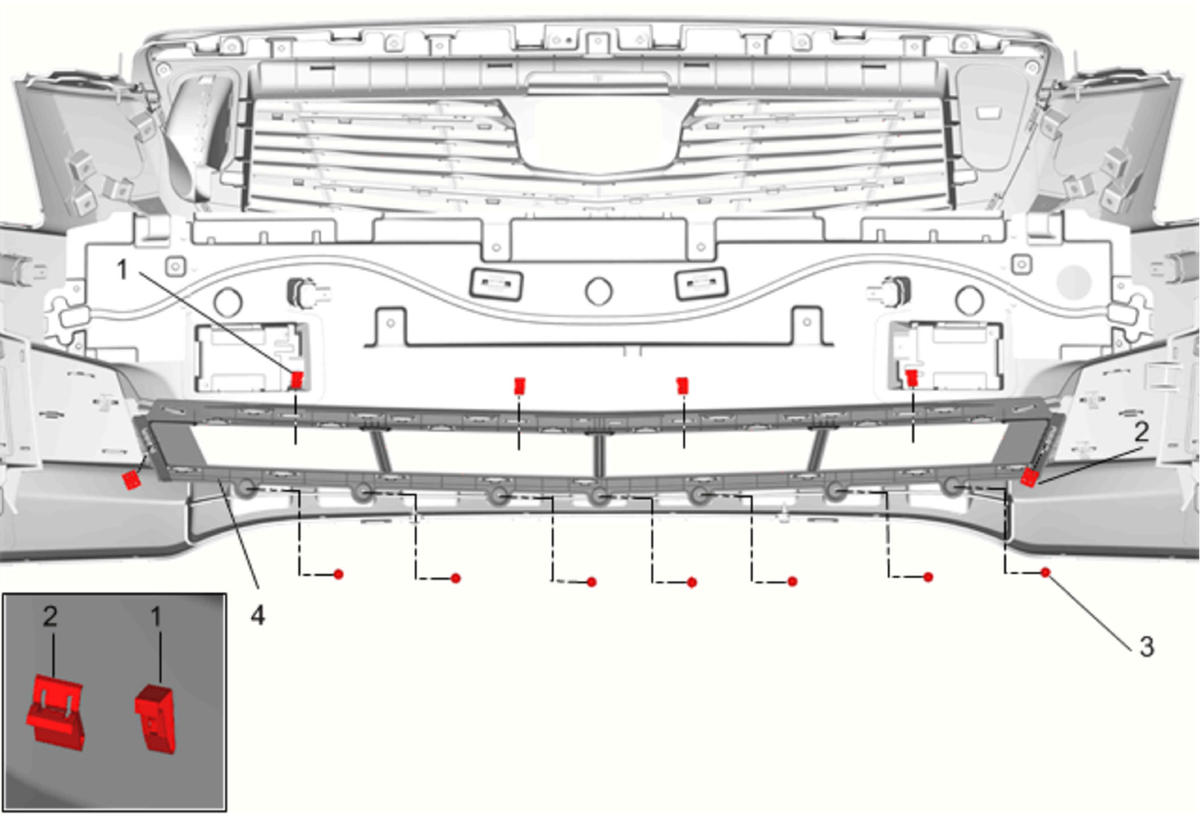

Fig 1: Front Lower Grille (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia energy upper absorber. Refer to Front Bumper Fascia Energy Upper Absorber Replacement (Coupe Outer)Front Bumper Fascia Energy Upper Absorber Replacement (ATS-V)Front Bumper Fascia Energy Upper Absorber Replacement (Inner and Outer Coupe V)Front Bumper Fascia Energy Upper Absorber Replacement (Coupe Inner) Place the bumper fascia face down on a clean protected surface.
1	Front Bumper Fascia Lower Molding Clip (Qty 4)
2	Front Lower Grille Clip (Qty 2)
3	Front Lower Grille Bolt (Qty 7) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
4	Front Lower Grille Procedure Using a flat bladed tool release the front lower grille tabs and pull the front lower grille from the front bumper fascia.
