Front Grille Opening Cover Replacement (Coupe With Out XFE)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

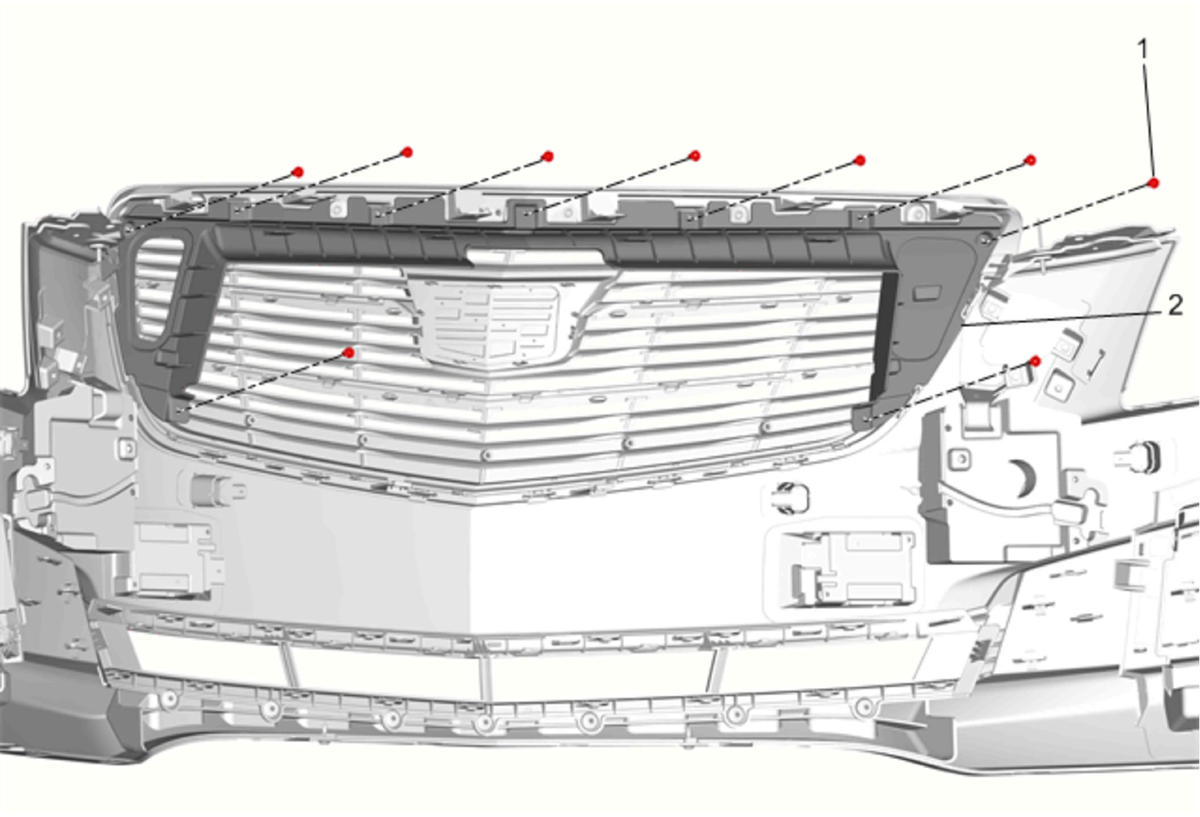

Fig 1: Front Grille Opening Cover (Coupe Without XFE)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia energy upper absorber. Refer to Front Bumper Fascia Energy Upper Absorber Replacement (Coupe Outer)Front Bumper Fascia Energy Upper Absorber Replacement (ATS-V)Front Bumper Fascia Energy Upper Absorber Replacement (Inner and Outer Coupe V)Front Bumper Fascia Energy Upper Absorber Replacement (Coupe Inner) .
1	Front Grille Opening Cover Bolt (Qty: 9) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Grille Opening Cover Procedure Pull the front grille opening cover from the front bumper fascia.
