Outside Rearview Mirror Housing Cover Molding Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

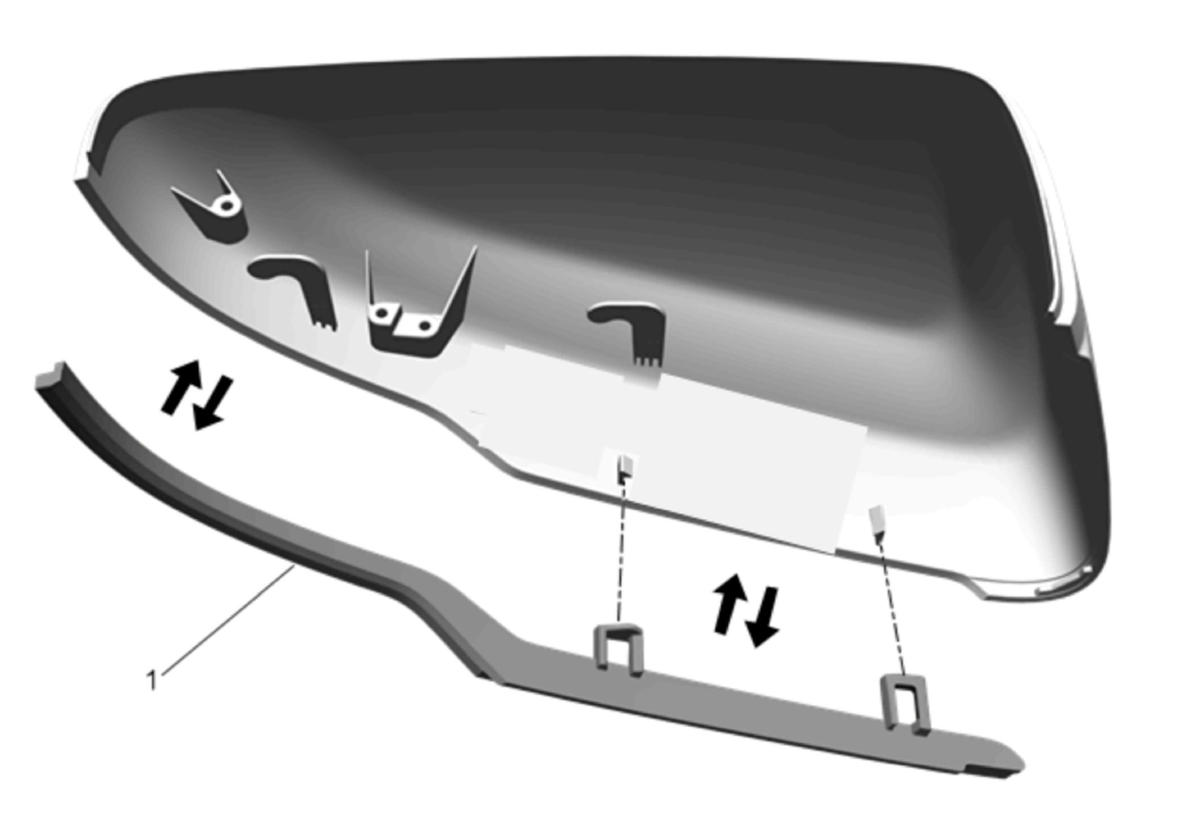

Fig 1: Outside Rearview Mirror Housing Cover Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the outside rearview mirror bezel. Refer to Outside Rearview Mirror Housing Bezel Replacement . Remove the outside rearview mirror turn signal lamp. Refer to Outside Rearview Mirror Turn Signal Lamp Replacement (DR2, DR4)Outside Rearview Mirror Turn Signal Lamp Replacement (DR5) .
1	Outside Rearview Mirror Molding Procedure Push the tabs outward and pull molding downward to remove from the housing upper cover. NOTE: Inspect the molding is properly seated on the housing upper cover.

Callout

Component Name

Preliminary Procedures

Remove the outside rearview mirror bezel. Refer to Outside Rearview Mirror Housing Bezel Replacement .
Remove the outside rearview mirror turn signal lamp. Refer to Outside Rearview Mirror Turn Signal Lamp Replacement (DR2, DR4)Outside Rearview Mirror Turn Signal Lamp Replacement (DR5) .

Outside Rearview Mirror Molding
Procedure
Push the tabs outward and pull molding downward to remove from the housing upper cover.

NOTE:

Inspect the molding is properly seated on the housing upper cover.
