Outside Rearview Mirror Turn Signal Lamp Replacement (DR5)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

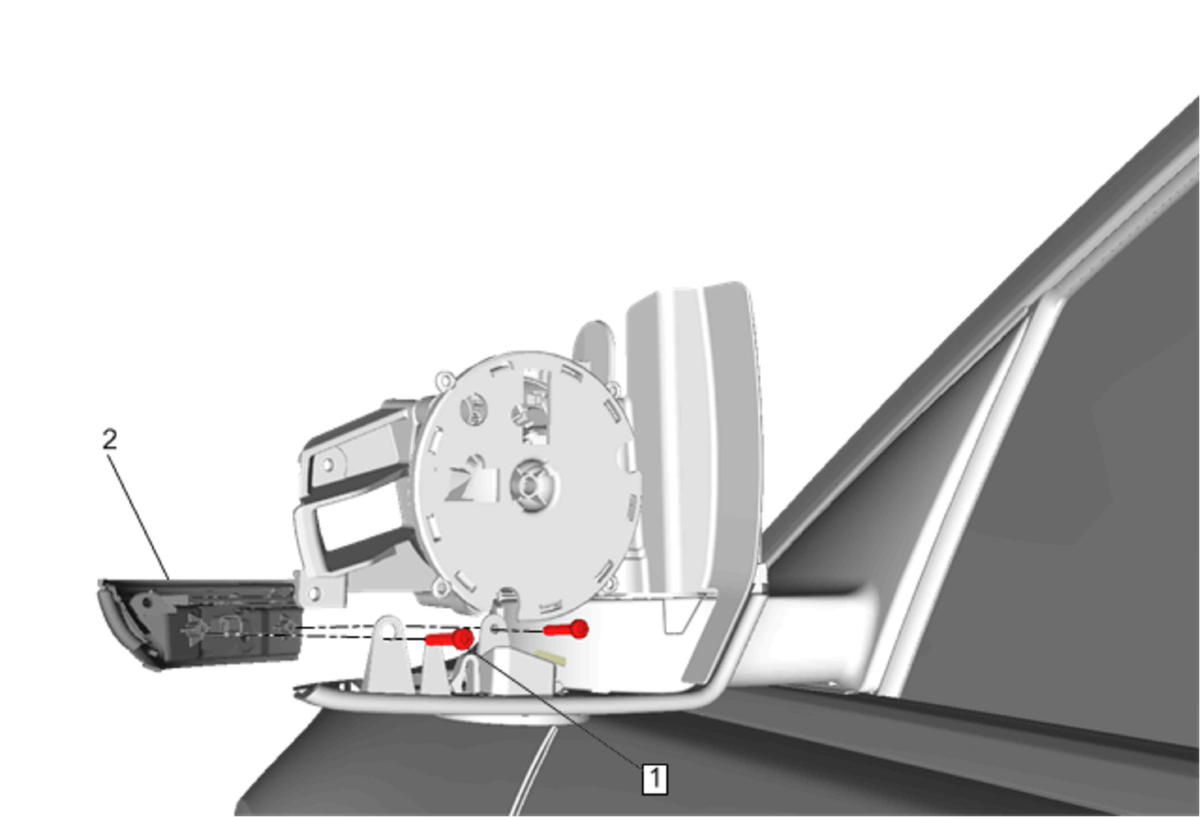

| Callout | Component Name |
|---|---|
| Preliminary Procedure Outside Rearview Mirror Housing Upper Cover Replacement (DR5) . |
|
| 1 | Outside Rearview Mirror Turn Signal Lamp Screw (Qty: 2)
CAUTION:
Procedure Remove the outside rearview mirror turn signal lamp screws from the mirror lower housing. Tighten 1.5 N.m (13 lb in) |
| 2 | Remove the outside rearview mirror turn signal lamp from the lower housing. |
