Outside Rearview Mirror Housing Bezel Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

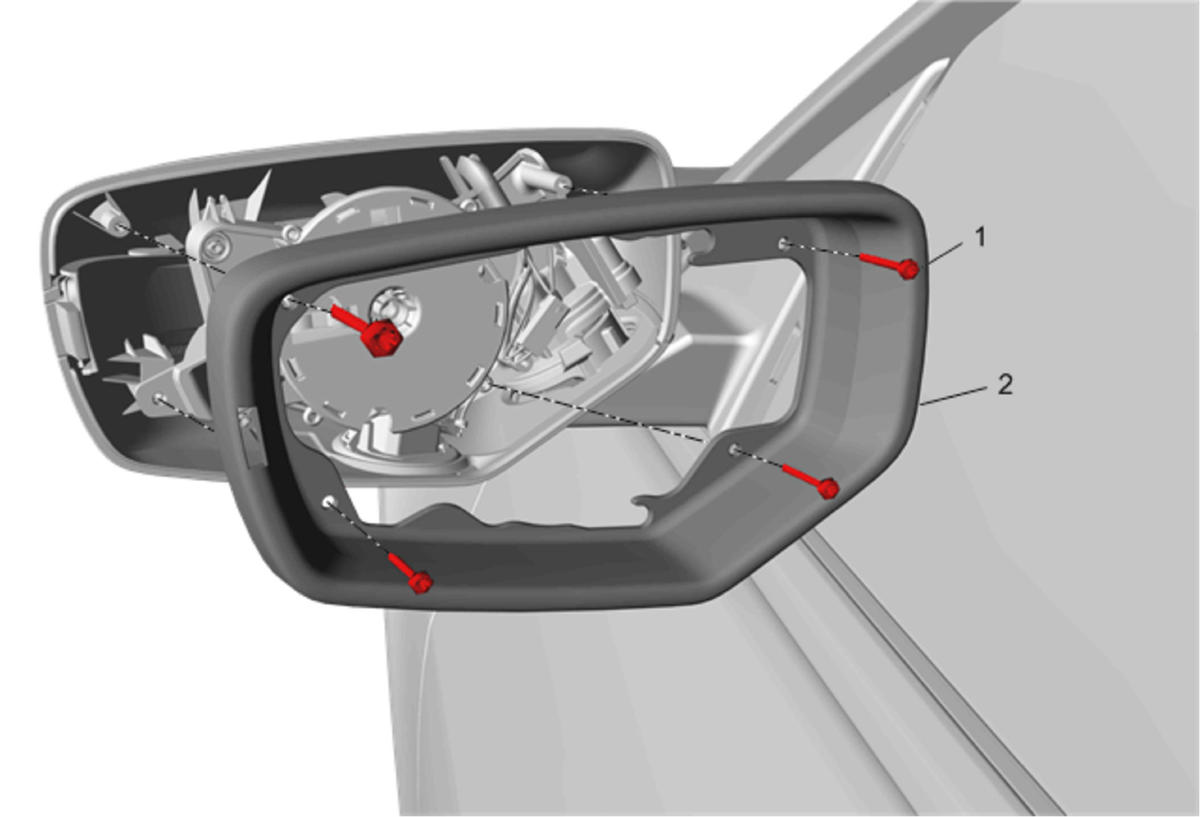

Fig 1: Outside Rearview Mirror Housing Bezel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement (DR2, DR5) Outside Rearview Mirror Glass Replacement (DR4) .
1	Outside Rearview Mirror Bezel Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Outside Rearview Mirror Bezel Procedures Pull bezel rearward from mirror being careful not to break the retainer tab on the outside of mirror. When installing bezel, align retaining tab with slot. NOTE: Inspect the outside rearview mirror for proper operation.

Callout

Component Name

Preliminary Procedure
Remove the outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement (DR2, DR5) Outside Rearview Mirror Glass Replacement (DR4) .

Outside Rearview Mirror Bezel Screw (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
1.5 N.m (13 lb in)

Outside Rearview Mirror Bezel

Procedures

Pull bezel rearward from mirror being careful not to break the retainer tab on the outside of mirror.
When installing bezel, align retaining tab with slot.

NOTE:

Inspect the outside rearview mirror for proper operation.
