Outside Rearview Mirror Turn Signal Lamp Replacement (DR2, DR4)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

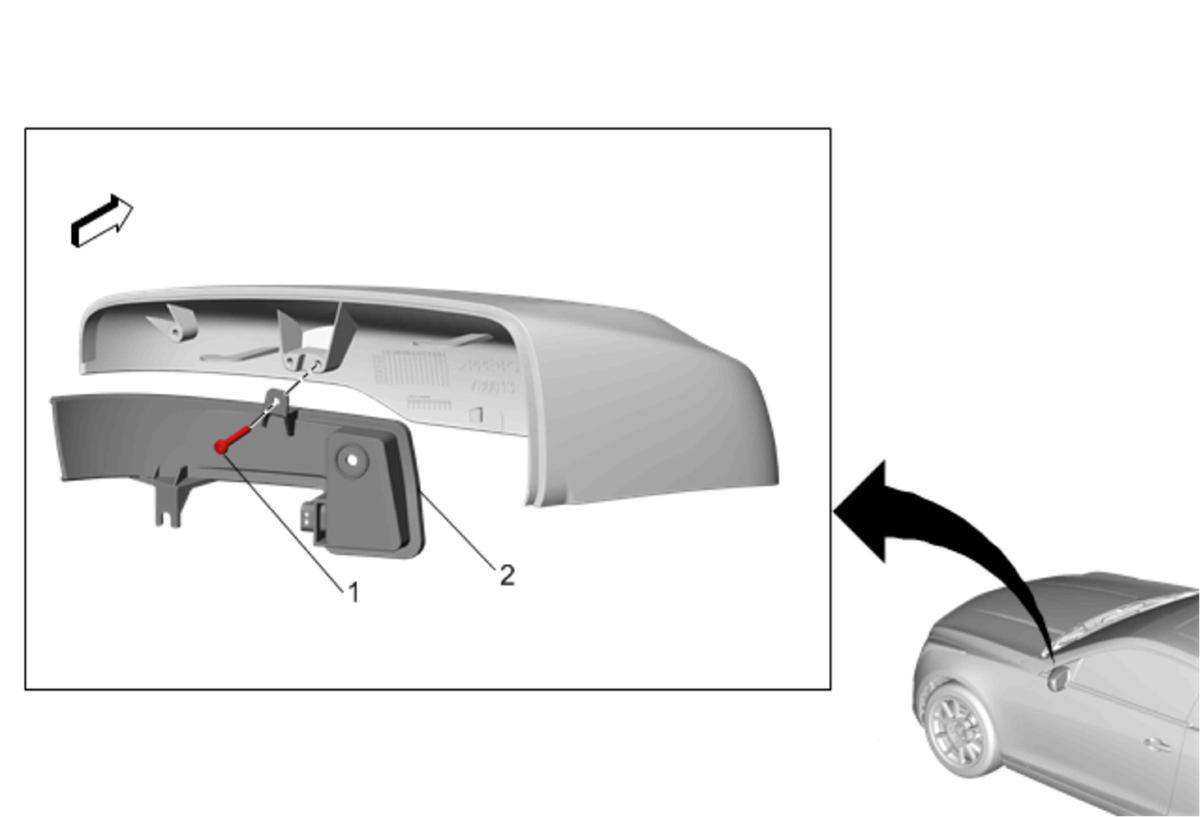

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the outside rearview mirror housing upper cover. Refer to Outside Rearview Mirror Housing Upper Cover Replacement (DR4, DR2) . |
|
| 1 | Outside Rearview Mirror Turn Signal Lamp Screw.
CAUTION:
Refer to Fastener Caution . |
| 2 | Outside Rearview Mirror Turn Signal Lamp Procedure Remove the outside rearview mirror turn signal lamp from the outside rearview mirror housing upper cover. |
