Rear Seat Armrest Hinge Finish Cover Replacement (without AM9, with A6E)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

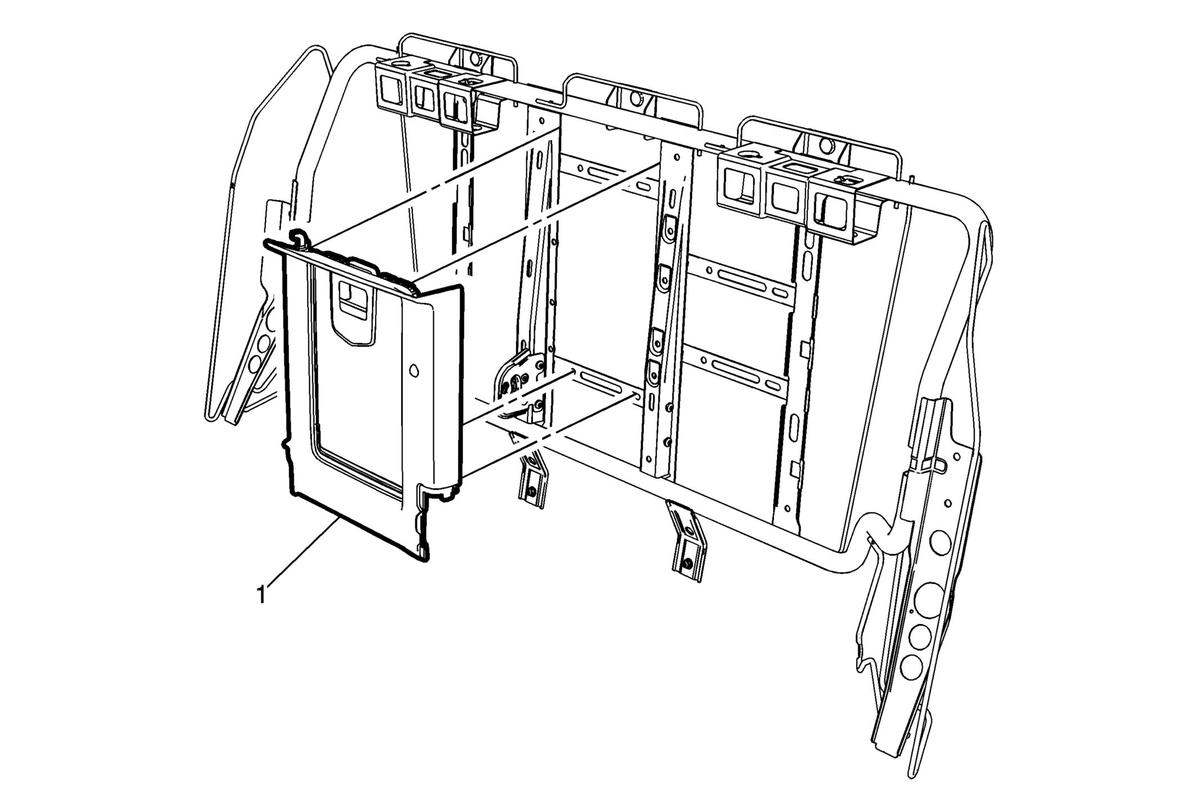

Fig 1: Rear Seat Armrest Hinge Finish Cover (without AM9, with A6E)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Sedan) Rear Seat Cushion Removal and Installation (Coupe) . Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (without AM9, with A6E) Rear Seat Back Cushion Cover and Pad Replacement (Coupe) Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement (Sedan)
1	Rear Seat Armrest Hinge Finish Cover Procedure Disengage the rear seat armrest access panel retainers from rear seat back frame.

Callout

Component Name

Preliminary Procedures

Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Sedan) Rear Seat Cushion Removal and Installation (Coupe) .
Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (without AM9, with A6E) Rear Seat Back Cushion Cover and Pad Replacement (Coupe)
Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement (Sedan)

Rear Seat Armrest Hinge Finish Cover
Procedure
Disengage the rear seat armrest access panel retainers from rear seat back frame.
