Rear Seat Back Cushion Cover and Pad Replacement (without AM9, with A6E)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

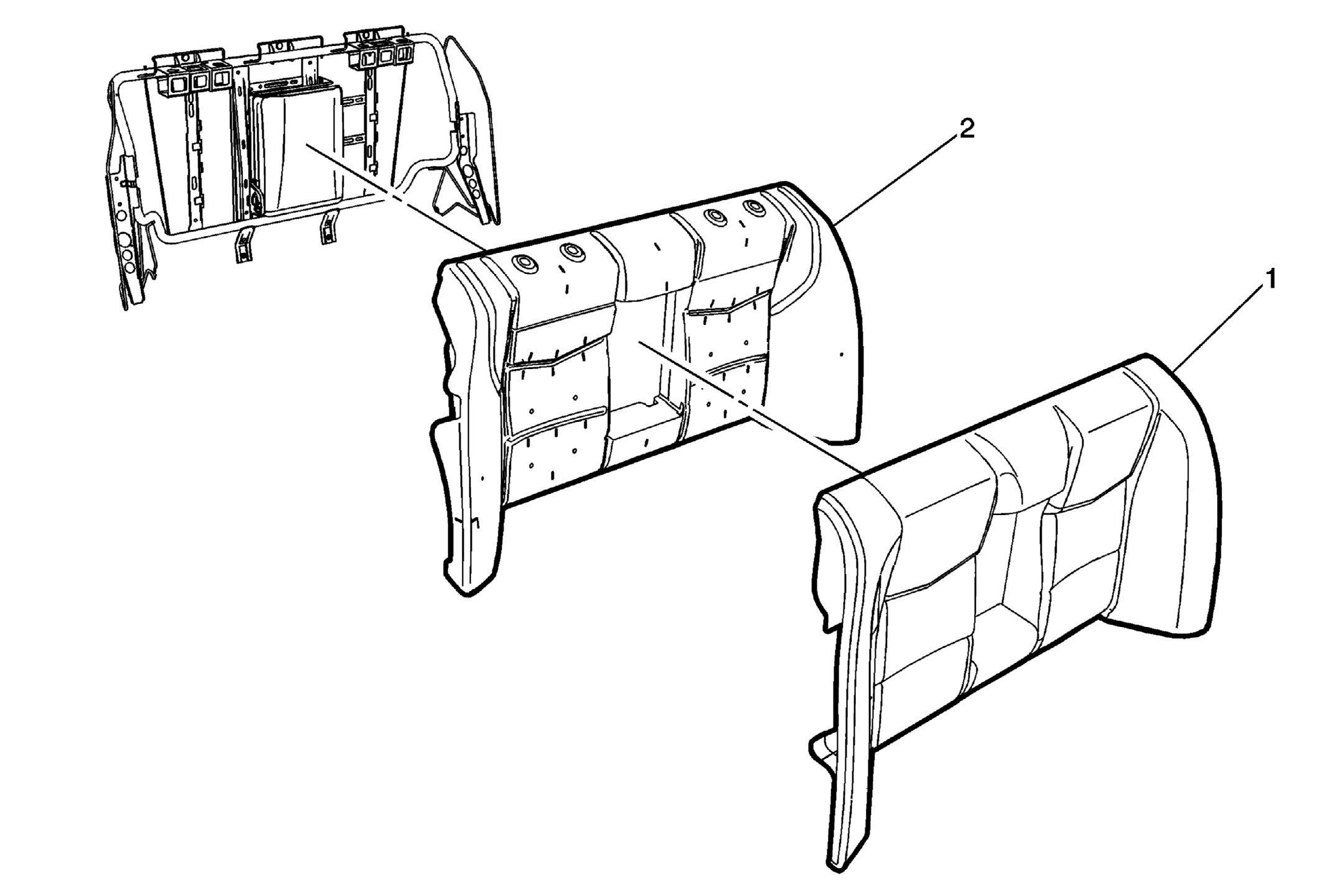

Fig 1: Rear Seat Back Cushion Cover & Pad (without AM9, with A6E)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Sedan) Rear Seat Cushion Removal and Installation (Coupe) . Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (without AM9) . Remove the rear seat head restraint guides. Refer to Rear Seat Head Restraint Guide Replacement (without AM9) . Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement (Sedan) .
1	Rear Seat Back Cushion Cover Procedure Disconnect the j-channel connectors around the back cushion cover and armrest. Remove the 4 hog rings attaching the pad to the frame. Remove the 12 hog rings attaching the cushion cover to the pad. Separate the seat back cushion cover from the pad.
2	Rear Seat Back Cushion Pad

Callout

Component Name

Preliminary Procedure

Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Sedan) Rear Seat Cushion Removal and Installation (Coupe) .
Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (without AM9) .
Remove the rear seat head restraint guides. Refer to Rear Seat Head Restraint Guide Replacement (without AM9) .
Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement (Sedan) .

Rear Seat Back Cushion Cover

Procedure

Disconnect the j-channel connectors around the back cushion cover and armrest.
Remove the 4 hog rings attaching the pad to the frame.
Remove the 12 hog rings attaching the cushion cover to the pad.
Separate the seat back cushion cover from the pad.

Rear Seat Back Cushion Pad
