Rear Seat Armrest Replacement (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

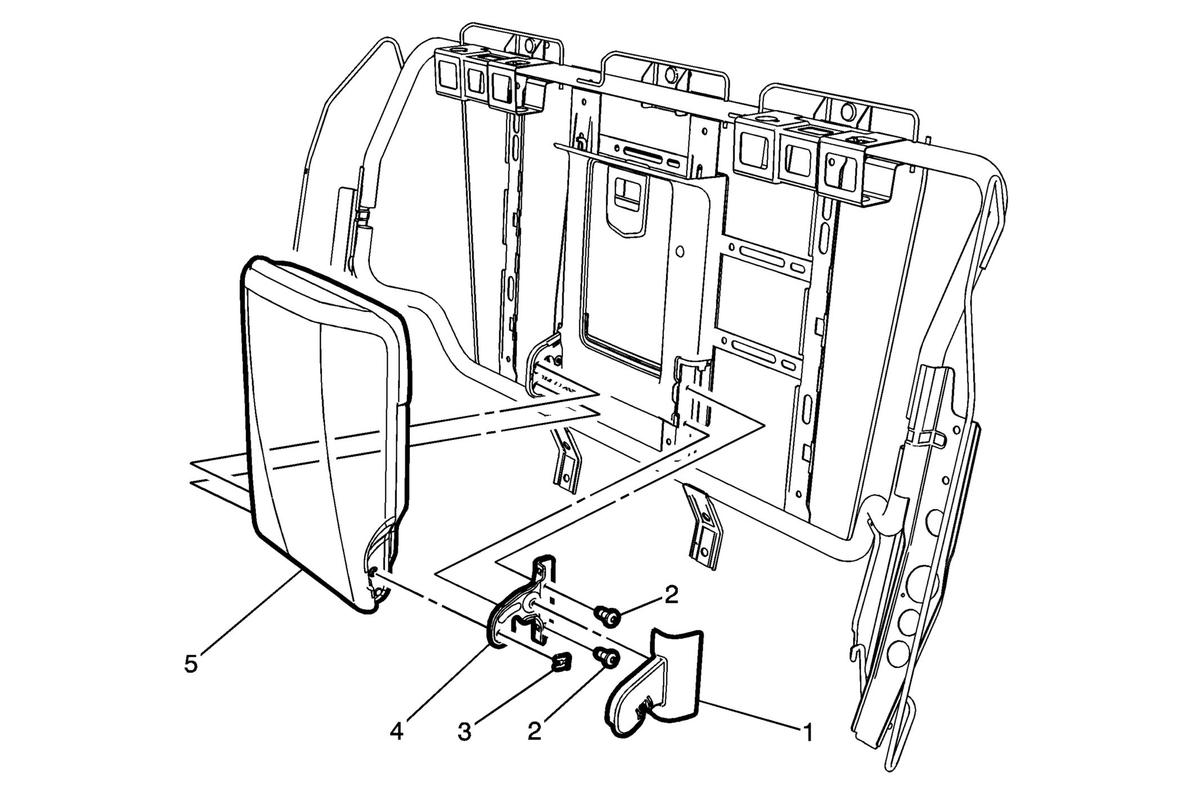

Fig 1: Rear Seat Armrest Components (Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Sedan) . Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (40% Seat with AM9) Rear Seat Back Cushion Removal and Installation (60% Seat with AM9) Rear Seat Back Cushion Removal and Installation (without AM9) . Remove the rear seat head restraint guides. Refer to Rear Seat Head Restraint Guide Replacement (with AM9) Rear Seat Head Restraint Guide Replacement (without AM9) .
1	Rear Seat Armrest Hinge Finish Cover
2	Rear Seat Armrest Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
3	Rear Seat Armrest Clip
4	Rear Seat Armrest Hinge Finish Bracket
5	Rear Seat Armrest
