Rear Seat Armrest Hinge Finish Cover Replacement (with AM9)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

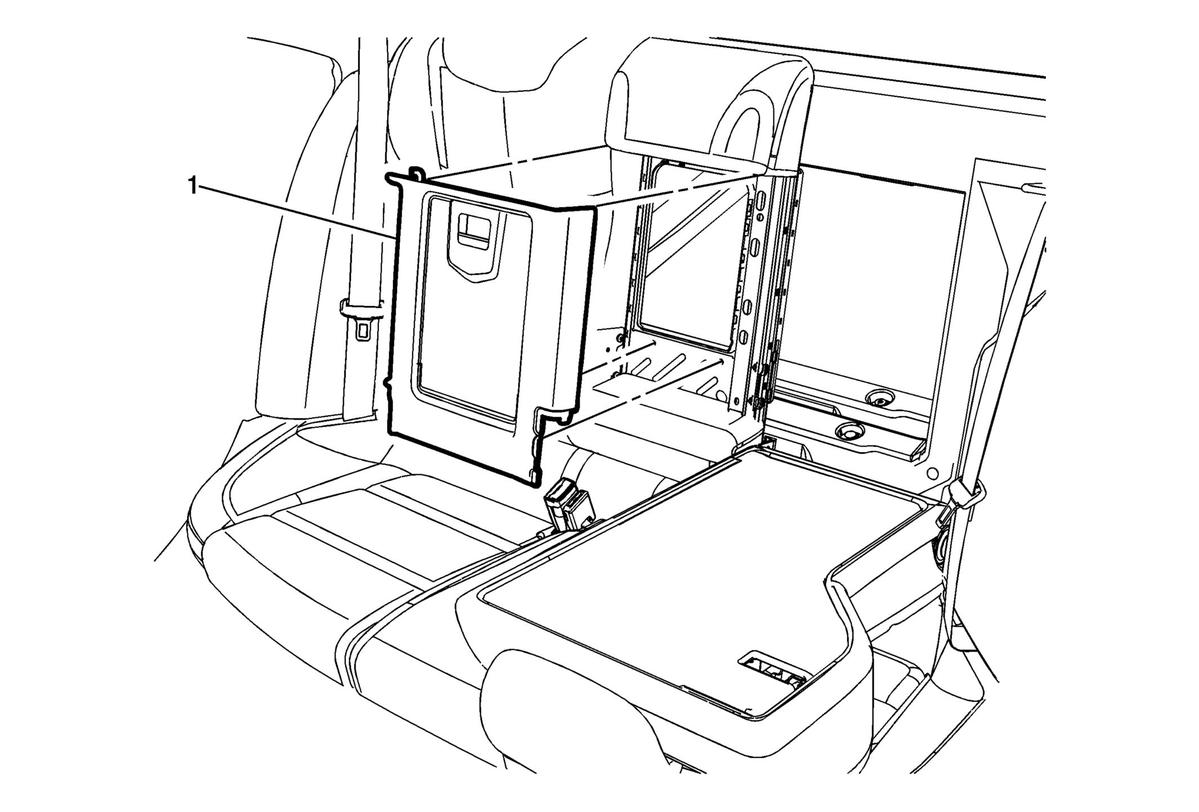

Fig 1: Rear Seat Armrest Hinge Finish Cover (with AM9)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat back armrest. Refer to Rear Seat Armrest Replacement (with AM9) Rear Seat Armrest Replacement (Sedan) . Remove the rear seat armrest closeout panel. Refer to Rear Seat Armrest Closeout Panel Replacement (with AM9)
1	Rear Seat Armrest Hinge Finish Cover Procedure Disengage the rear seat armrest hinge finish cover retainers from rear seat back frame.

Callout

Component Name

Preliminary Procedures

Remove the rear seat back armrest. Refer to Rear Seat Armrest Replacement (with AM9) Rear Seat Armrest Replacement (Sedan) .
Remove the rear seat armrest closeout panel. Refer to Rear Seat Armrest Closeout Panel Replacement (with AM9)

Rear Seat Armrest Hinge Finish Cover
Procedure
Disengage the rear seat armrest hinge finish cover retainers from rear seat back frame.
