Rear Seat Armrest Replacement (with AM9)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

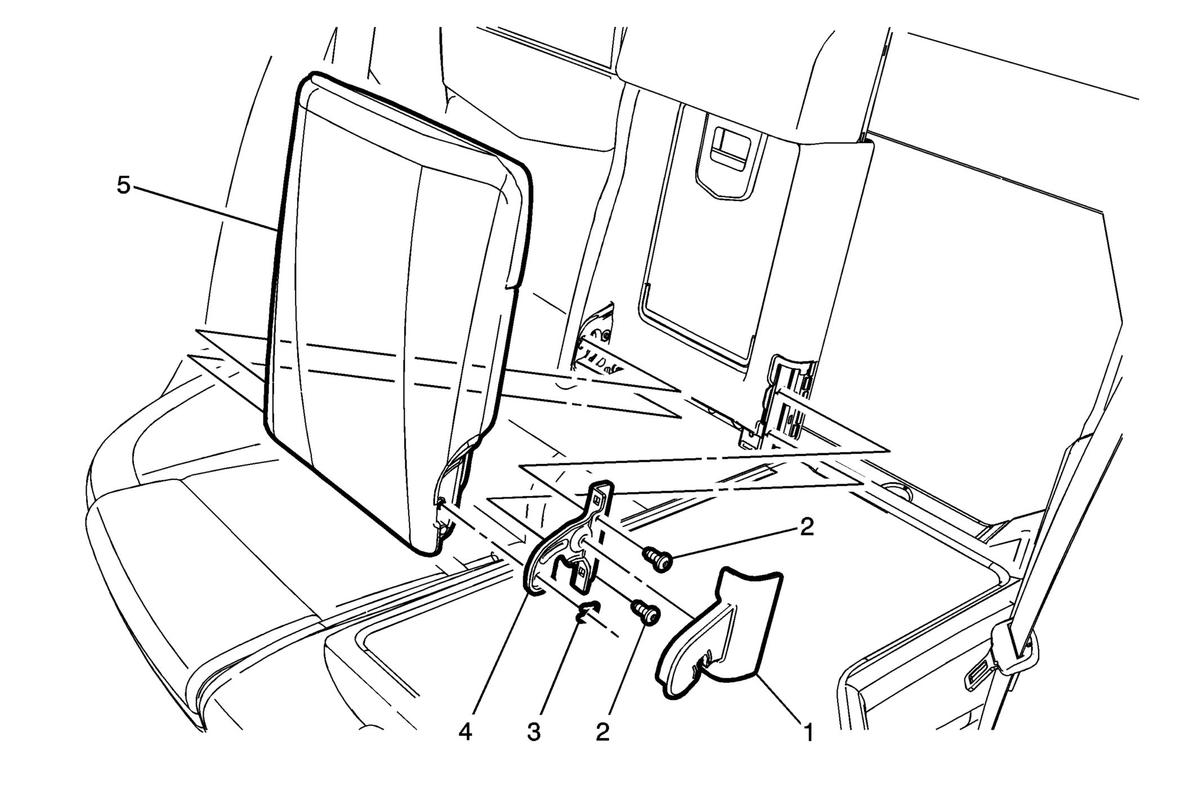

| Callout | Component Name |
|---|---|
| 1 | Rear Seat Armrest Hinge Finish Cover Procedure Fold the 40% seat in the down position, reposition the 60% seat as necessary for access. |
| 2 | Rear Seat Armrest Fastener (Qty 2)
CAUTION:
Refer to Fastener Caution . |
| 3 | Rear Seat Armrest Clip |
| 4 | Rear Seat Armrest Hinge Finish Bracket |
| 5 | Rear Seat Armrest |
