Rear Seat Armrest Closeout Panel Replacement (with AM9)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

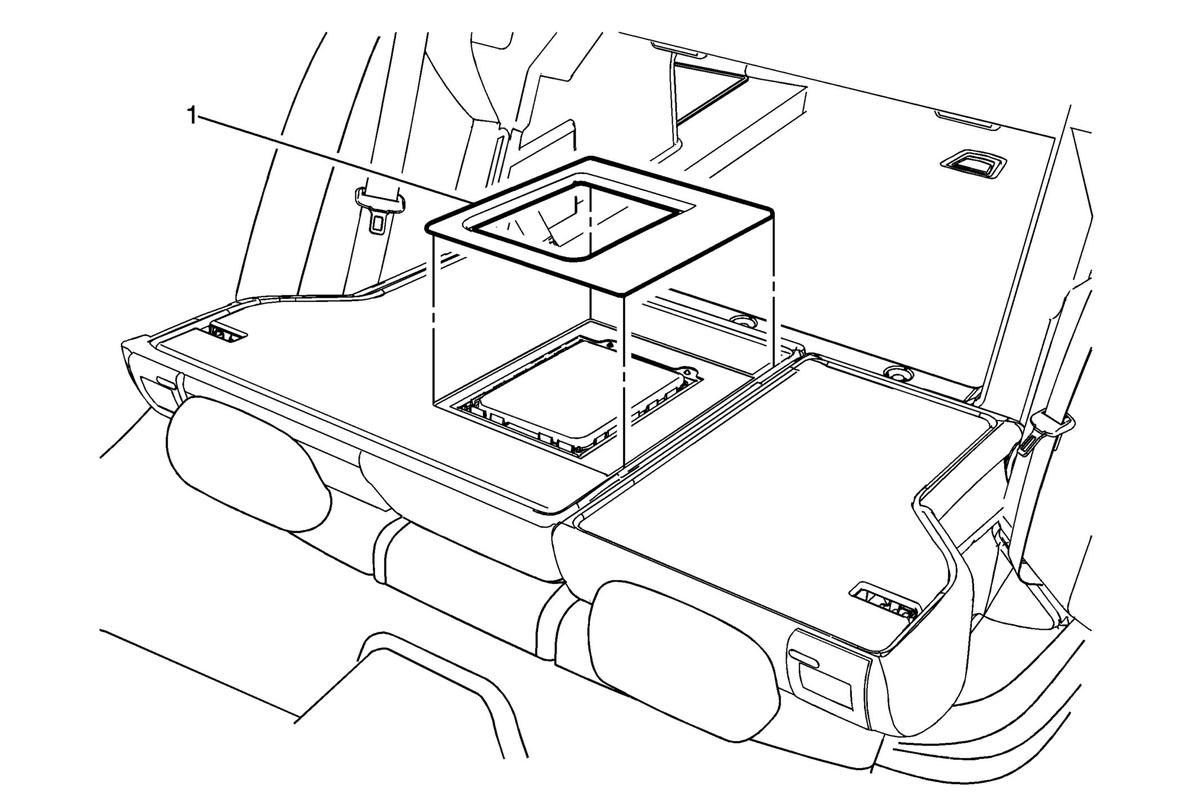

| Callout |
Component Name |
| 1 |
Rear Seat Back Cushion Armrest Closeout Panel Procedure
- Fold rear seat back cushion forward.
- Use a flat-bladed plastic trim tool to remove the finish cover from the rear seat back cushion panel.
|
