Front Bumper Fascia Energy Lower Absorber Replacement (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

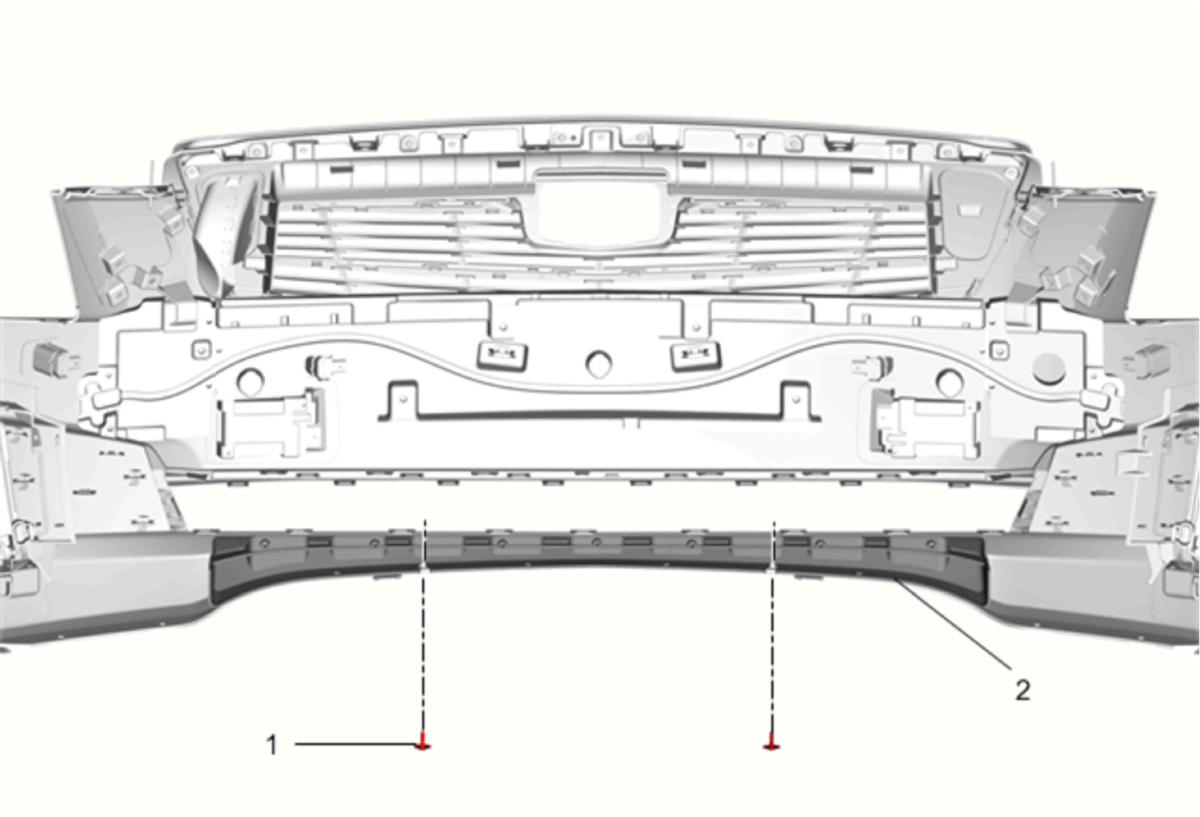

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front lower grille. Refer to Front Lower Grille Replacement (Sedan)Front Lower Grille Replacement (Coupe)Front Lower Grille Replacement (ATS-V) . |
|
| 1 | Front Bumper Fascia Energy Lower Absorber Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Front Bumper Fascia Energy Lower Absorber |
