Front Lower Grille Replacement (Sedan)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

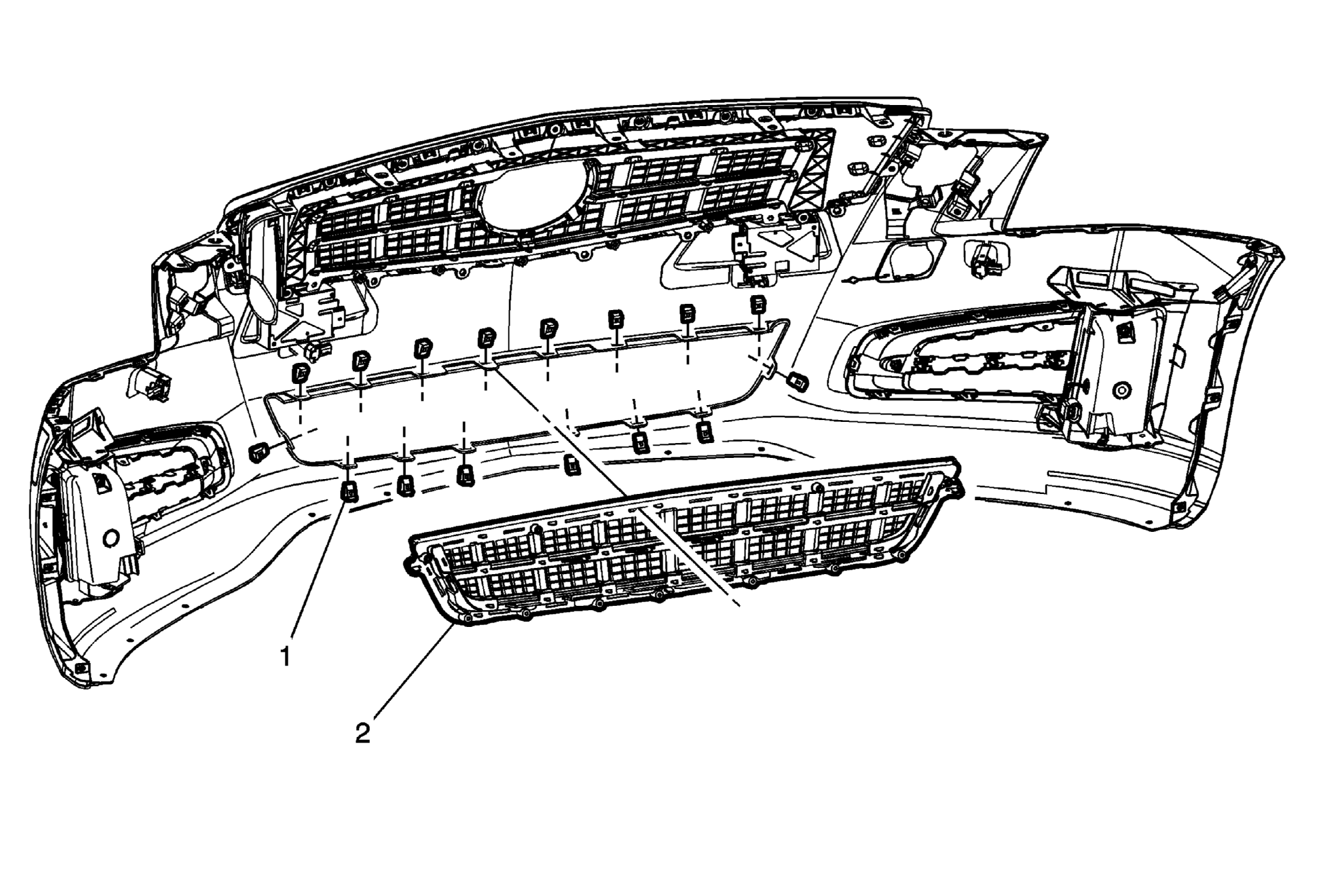

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the radiator grille water deflector lower. Refer to Radiator Grille Water Deflector Replacement - Lower . |
|
| 1 | Radiator Lower Grille Retainer (Qty: 16)
CAUTION:
Refer to Fastener Caution . |
| 2 | Radiator Lower Grille Procedure Pull the radiator lower grille from the front bumper fascia. |
