Front Lower Grille Replacement (ATS-V)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

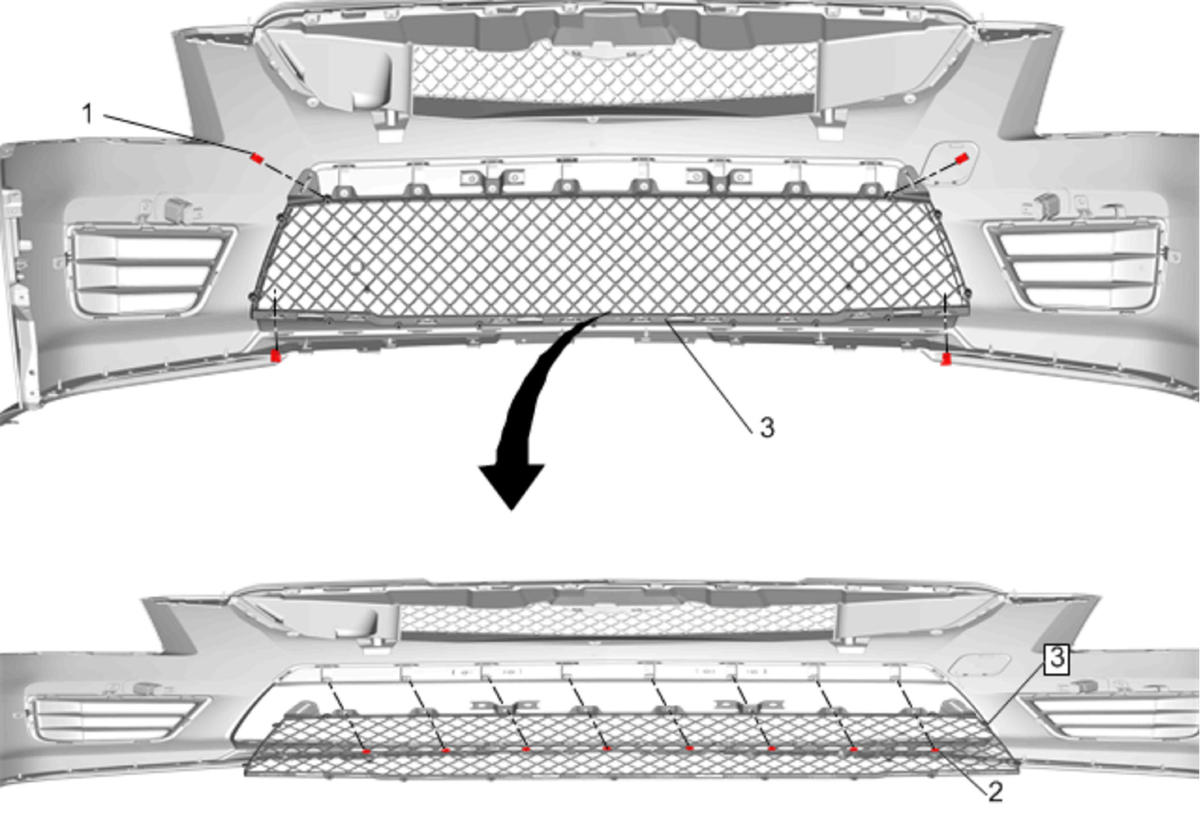

Fig 1: Front Lower Grille (ATS-V)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Energy Upper Absorber Replacement (ATS-V) Place the bumper fascia face down on a clean protected surface.
1	Front Lower Grille Clip (Qty: 4)
2	Front Lower Grille Bolt (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Front Lower Grille Procedure Use a small flat-bladed tool to release the front bumper fascia locking retainer from the radiator lower grille.
