Aero Shutter Front Bumper Fascia Air Deflector Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

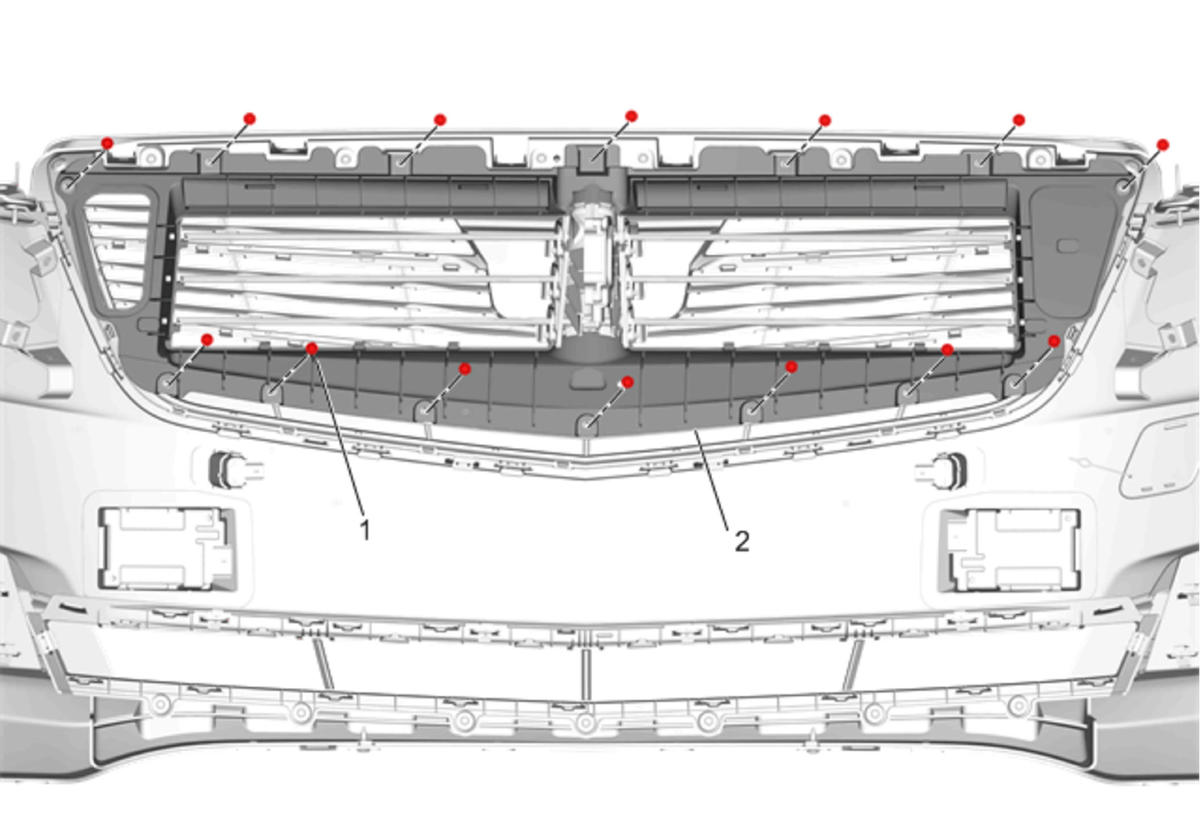

Fig 1: Aero Shutter Front Bumper Fascia Air Deflector (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia energy upper absorber. Refer to Front Bumper Fascia Energy Upper Absorber Replacement (Coupe Outer) Front Bumper Fascia Energy Upper Absorber Replacement (Inner and Outer Coupe V) Front Bumper Fascia Energy Upper Absorber Replacement (Coupe Inner) . Place the bumper fascia face down on a clean protected surface.
1	Aero Shutter Front Bumper Fascia Air Deflector Bolt (Qty: 14) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Aero Shutter Front Bumper Fascia Air Deflector Procedure Remove the air cleaner outlet duct front. Refer to Air Cleaner Outlet Front Duct Replacement Disconnect electrical connector.

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia energy upper absorber. Refer to Front Bumper Fascia Energy Upper Absorber Replacement (Coupe Outer) Front Bumper Fascia Energy Upper Absorber Replacement (Inner and Outer Coupe V) Front Bumper Fascia Energy Upper Absorber Replacement (Coupe Inner) .
Place the bumper fascia face down on a clean protected surface.

Aero Shutter Front Bumper Fascia Air Deflector Bolt (Qty: 14)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Aero Shutter Front Bumper Fascia Air Deflector

Procedure

Remove the air cleaner outlet duct front. Refer to Air Cleaner Outlet Front Duct Replacement
Disconnect electrical connector.
