Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the air conditioning system refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) Refrigerant Recovery and Recharging (R-1234yf)
  2. Remove Air Cleaner Outlet Duct. Refer to Air Cleaner Outlet Duct Replacement (LGX)
  3. Remove Air Cleaner Assembly. Refer to Air Cleaner Assembly Replacement (LGX)
    4. Fig 1: Radiator Upper Bracket (LTG, LGX)
    GM3471573Courtesy of GENERAL MOTORS COMPANY
  4. Remove Radiator Upper Bracket (2). Refer to Radiator Upper Bracket Replacement (LTG, LGX)
  5. Remove Front Bumper Fascia Center Support (Lower). Refer to Front Bumper Fascia Center Support Replacement
  6. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)
    7. Fig 2: Air Conditioning Compressor And Condenser Hose
    GM2838656Courtesy of GENERAL MOTORS COMPANY
  7. Remove Air Conditioning Compressor and Condenser Hose (2) @ Air Conditioning Condenser. Refer to Air Conditioning Compressor Hose Replacement (LGX)
    8. Fig 3: Air Conditioning Condenser Outlet Tube Fasteners
    GM2882208Courtesy of GENERAL MOTORS COMPANY
  8. Remove Condenser Outlet Tube (5). Refer to Condenser Outlet Tube Replacement (LGX)

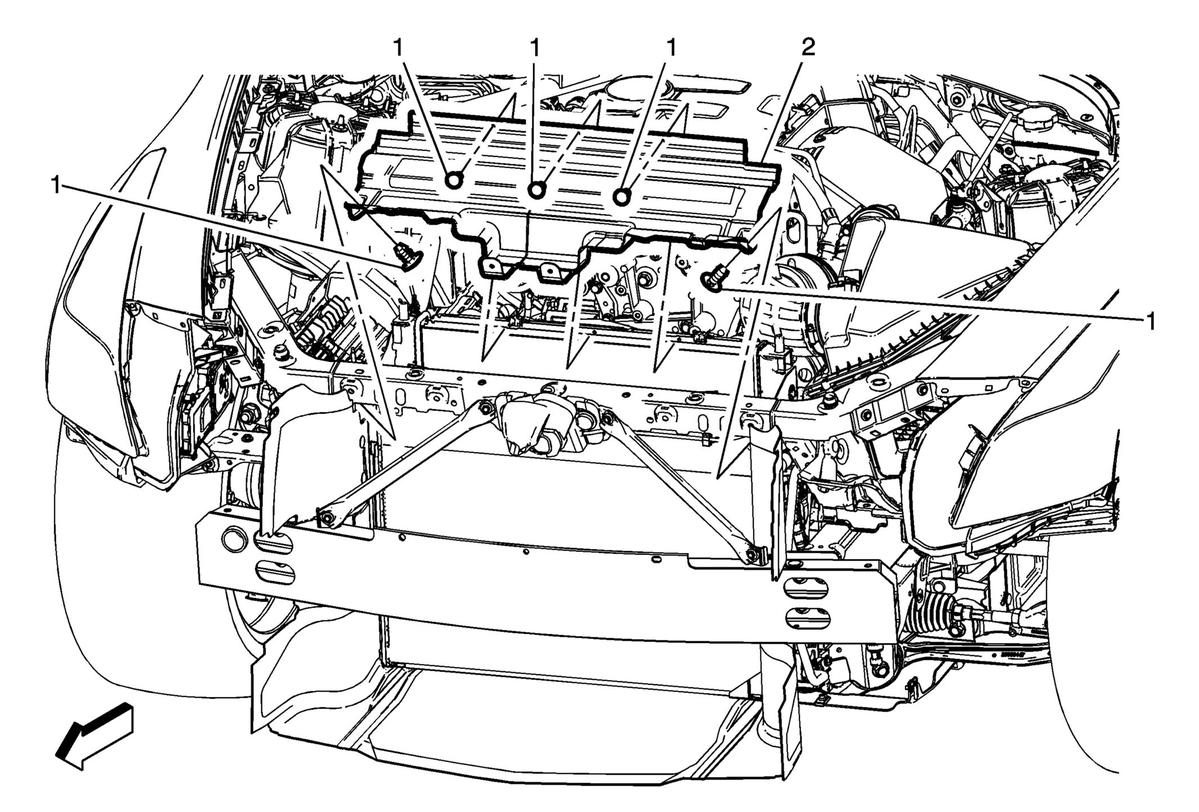

    9. Fig 4: Radiator Air Upper Baffle and Deflector
    GM3511498Courtesy of GENERAL MOTORS COMPANY
  9. Remove Radiator Air Upper Baffle and Deflector (2). Refer to Radiator Air Upper Baffle and Deflector Replacement (LGX)

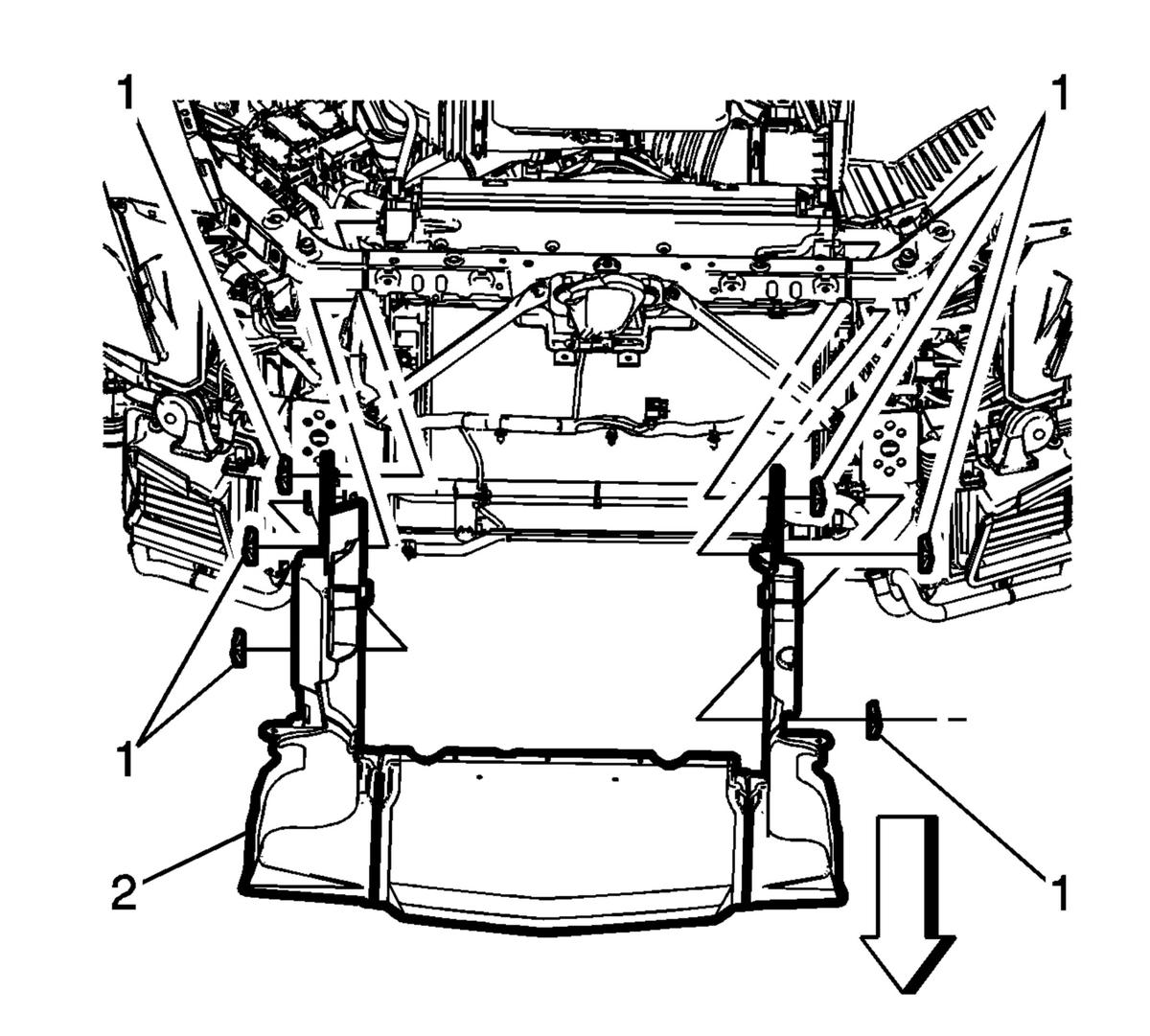

    10. Fig 5: Radiator Air Lower Baffle and Deflector
    GM3597957Courtesy of GENERAL MOTORS COMPANY
  10. Remove Radiator Air Lower Baffle and Deflector (2). Refer to Radiator Air Lower Baffle and Deflector Replacement (LGX)

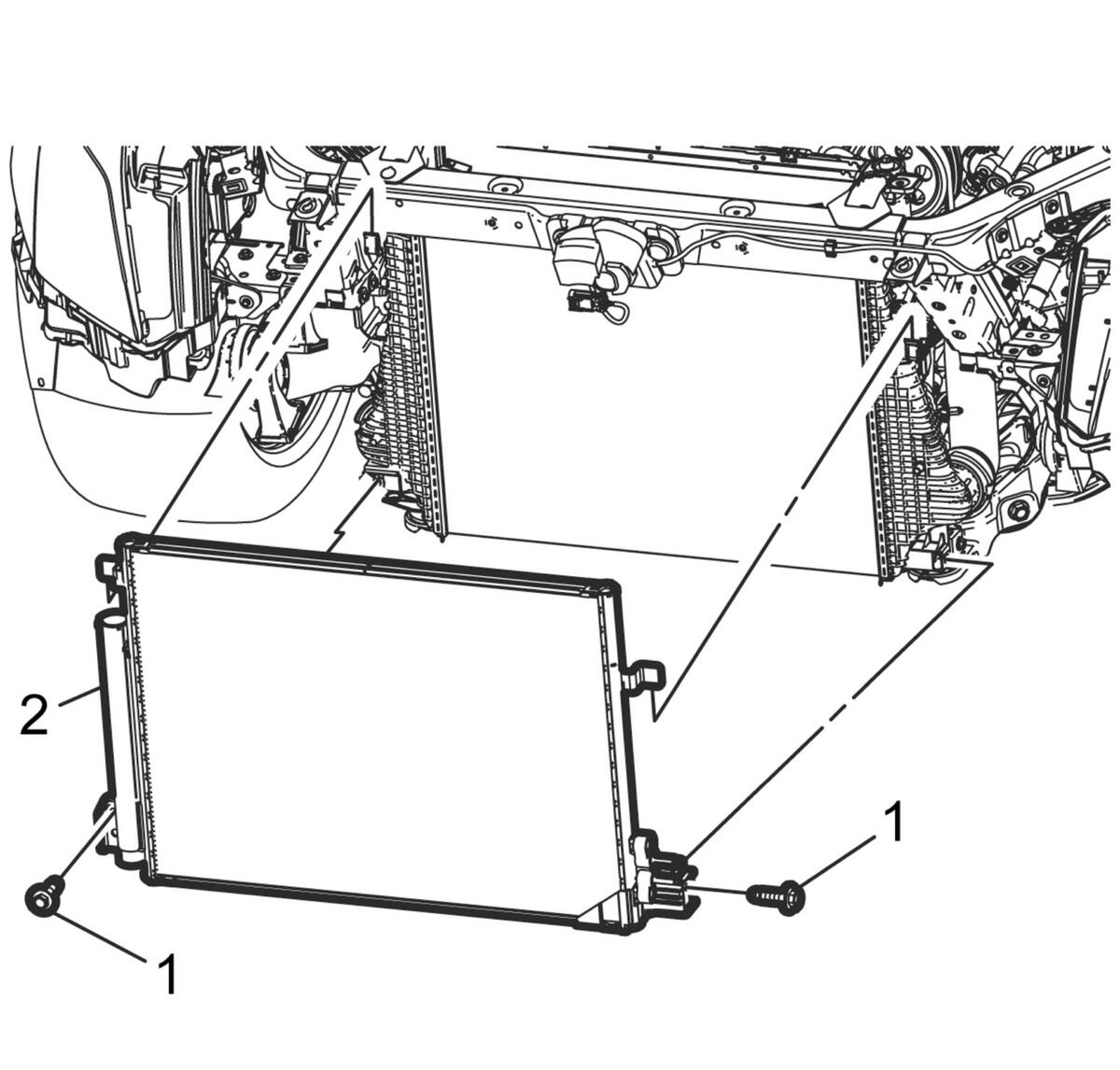

    11. Fig 6: Air Conditioning Condenser
    GM3642115Courtesy of GENERAL MOTORS COMPANY
  11. Remove Air Conditioning Condenser Brace Bolt (1)
  12. Remove Air Conditioning Condenser (2)
