Radiator Air Lower Baffle and Deflector Replacement (LGX)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

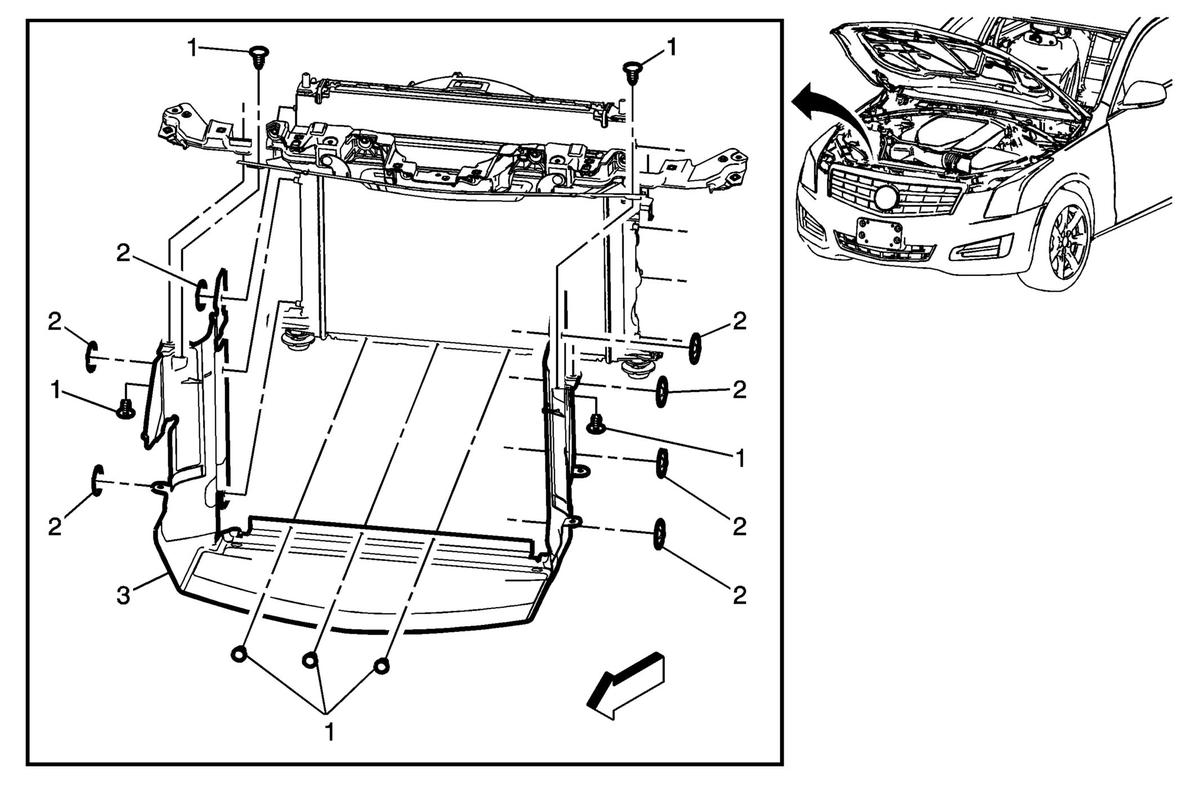

Fig 1: Radiator Air Side Lower Baffle & Deflector (LGX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper impact bar. Refer to Front Bumper Impact Bar Replacement . Remove the front bumper fascia center support and the forward range radar module if equipped. Refer to Forward Range Radar Module Replacement , or Front Bumper Fascia Center Support Replacement .
1	Radiator Air Side Baffle and Deflector Retainer (Qty: 7)
2	Radiator Air Side Baffle Retainer (Qty: 7)
3	Radiator Air Side Baffle and Deflector
