Radiator Air Upper Baffle and Deflector Replacement (LGX)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

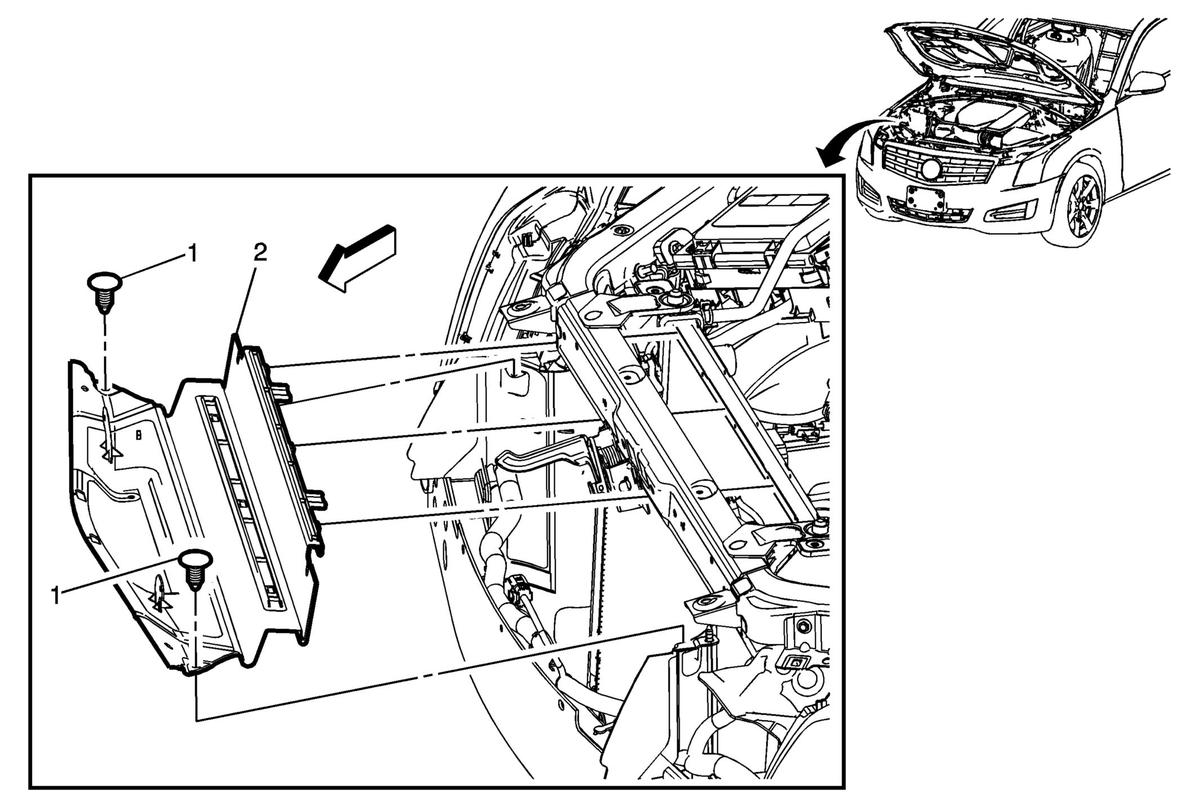

Fig 1: Radiator Air Upper Baffle & Deflector (LGX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement (Sedan)Front Compartment Front Sight Shield Replacement (Coupe) . Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the front bumper fascia center support and the forward range radar module if equipped. Refer to Forward Range Radar Module Replacement , or Front Bumper Fascia Center Support Replacement . Remove the front bumper fascia upper support. Refer to Front Bumper Fascia Upper Support Replacement . Remove the radiator upper brackets. Refer to Radiator Upper Bracket Replacement (LTG, LGX) . Lower the front portion of the drivetrain and front suspension frame enough to provide clearance between the upper core support and the condenser. Refer to Drivetrain and Front Suspension Frame Removal and Installation (LGX, LTG) .
1	Radiator Air Upper Baffle and Deflector Retainer (Qty: 2)
2	Radiator Air Upper Baffle and Deflector Procedure Release the radiator air upper baffle and deflector retainers from the air conditioning condenser and the radiator.

Callout

Component Name

Preliminary Procedures

Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement (Sedan)Front Compartment Front Sight Shield Replacement (Coupe) .
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
Remove the front bumper fascia center support and the forward range radar module if equipped. Refer to Forward Range Radar Module Replacement , or Front Bumper Fascia Center Support Replacement .
Remove the front bumper fascia upper support. Refer to Front Bumper Fascia Upper Support Replacement .
Remove the radiator upper brackets. Refer to Radiator Upper Bracket Replacement (LTG, LGX) .
Lower the front portion of the drivetrain and front suspension frame enough to provide clearance between the upper core support and the condenser. Refer to Drivetrain and Front Suspension Frame Removal and Installation (LGX, LTG) .

Radiator Air Upper Baffle and Deflector Retainer (Qty: 2)

Radiator Air Upper Baffle and Deflector
Procedure
Release the radiator air upper baffle and deflector retainers from the air conditioning condenser and the radiator.
