Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

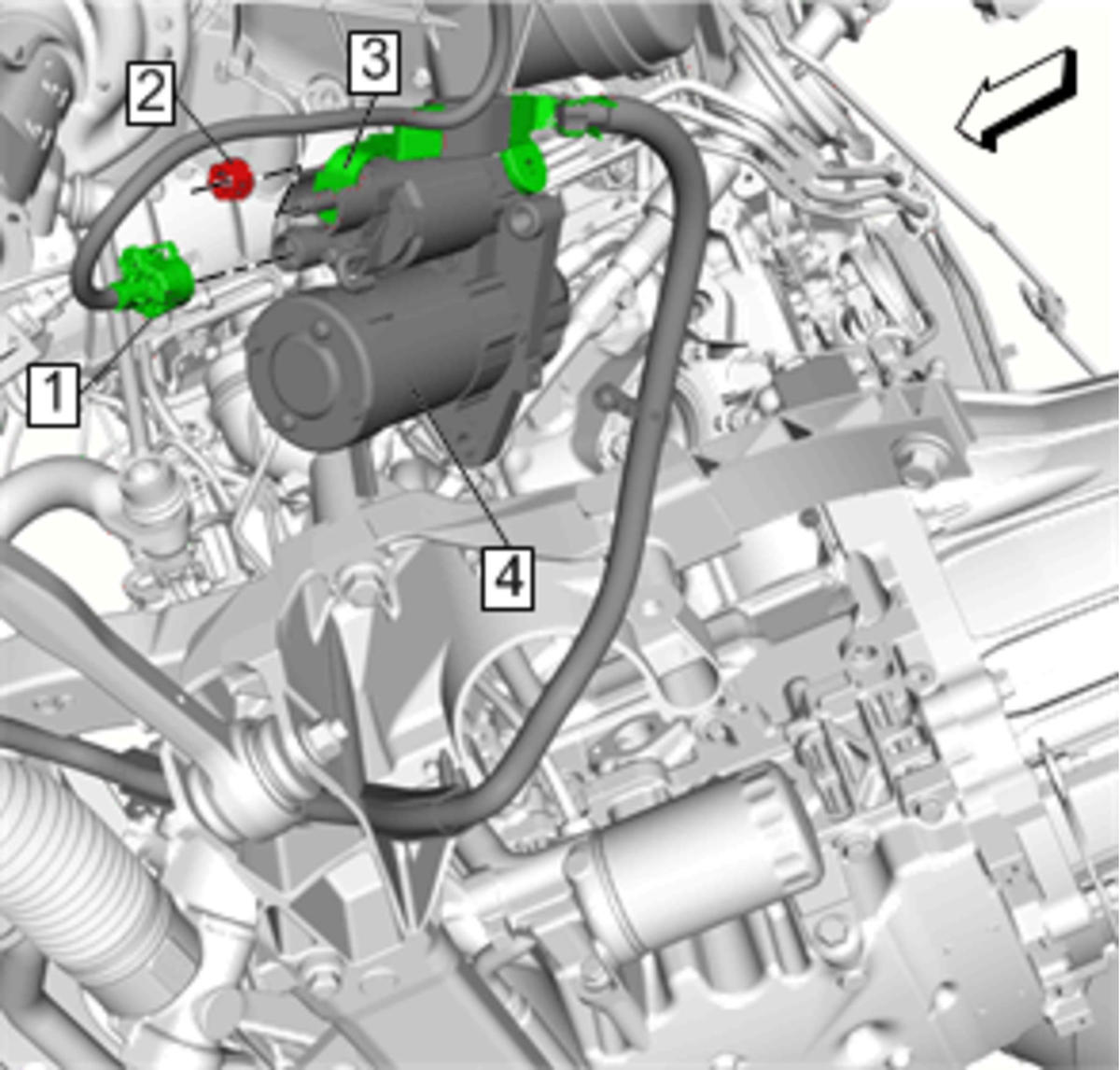

Fig 1: Starter Solenoid Connector

Courtesy of GENERAL MOTORS COMPANY

Connect Starter Solenoid Connector (1)
Install Starter Solenoid Cable (3)

CAUTION:

Refer to Fastener Caution

Install and tighten Starter Solenoid Cable Nut (2) to 12.5 N.m (111 lb in)
Install Starter (4)

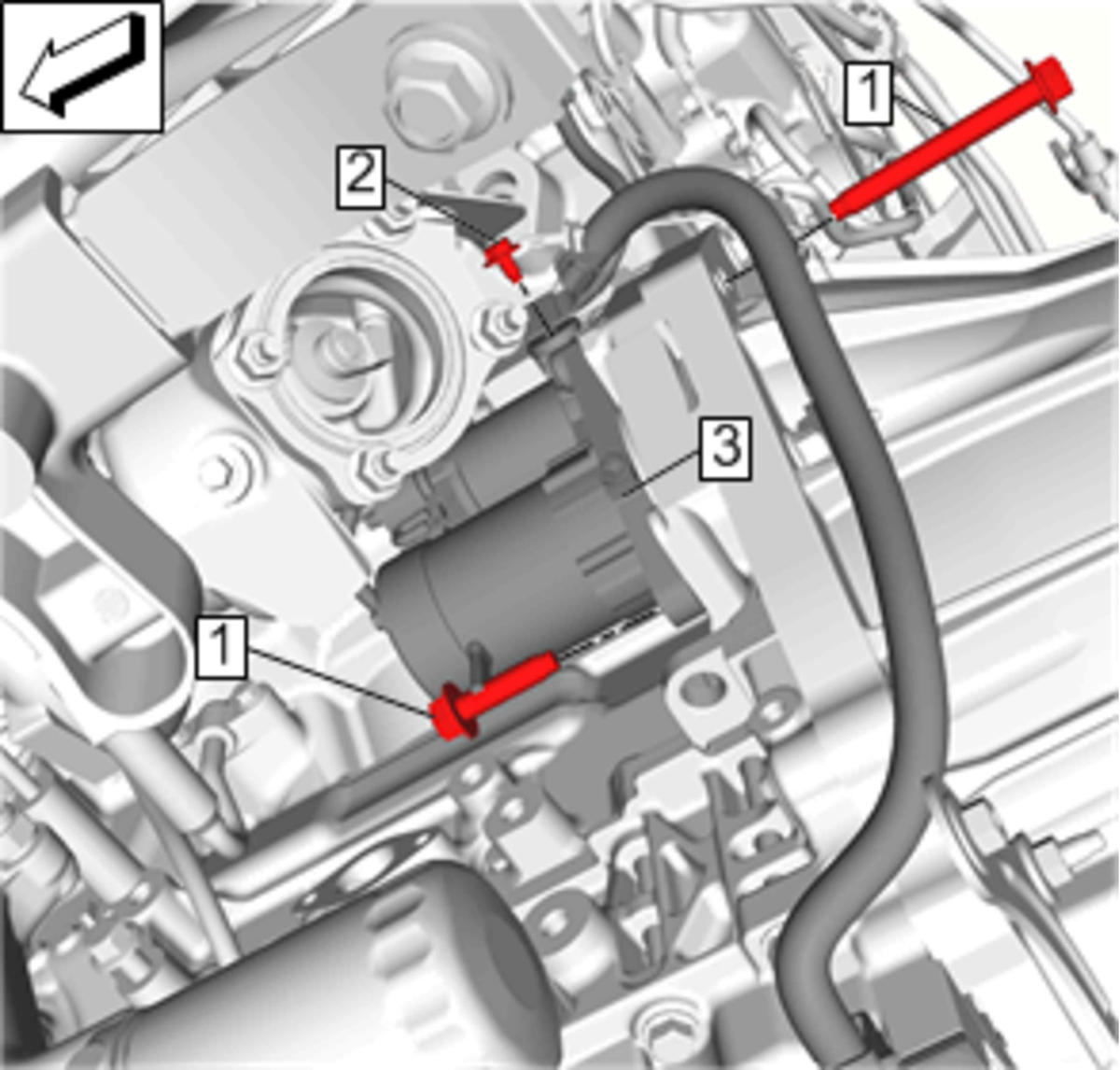

Fig 2: Starter Solenoid Cable Retainer Bolt

Courtesy of GENERAL MOTORS COMPANY

Install and tighten Starter Solenoid Cable Retainer Bolt (2) to 6 N.m (53 lb in)
Install and tighten Starter Mounting Bolt (1) (Qty: 2) to 58 N.m (43 lb ft)

Fig 3: Starter Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Install Starter Heat Shield (2). Refer to Starter Shield Replacement (LF4)

Fig 4: Turbocharger Oil Return Pipe

Courtesy of GENERAL MOTORS COMPANY

Install Turbocharger Oil Return Pipe (1). Refer to Turbocharger Oil Return Pipe Replacement (Bank 1)Turbocharger Oil Return Pipe Replacement (Bank 2)

Fig 5: Engine Mount Bracket

Courtesy of GENERAL MOTORS COMPANY

Install Engine Mount Bracket (1). Refer to Engine Mount Bracket Replacement - Left Side (LF4)
Lower the vehicle.

Fig 6: Starter Solenoid Cable Connector

Courtesy of GENERAL MOTORS COMPANY

Connect the starter solenoid cable connector to the engine harness connector (1).

Fig 7: Air Cleaner Assembly (LF4)

Courtesy of GENERAL MOTORS COMPANY

Install Air Cleaner Assembly (1). Refer to Air Cleaner Assembly Replacement (LF4)
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
