Engine Mount Bracket Replacement - Left Side (LF4)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

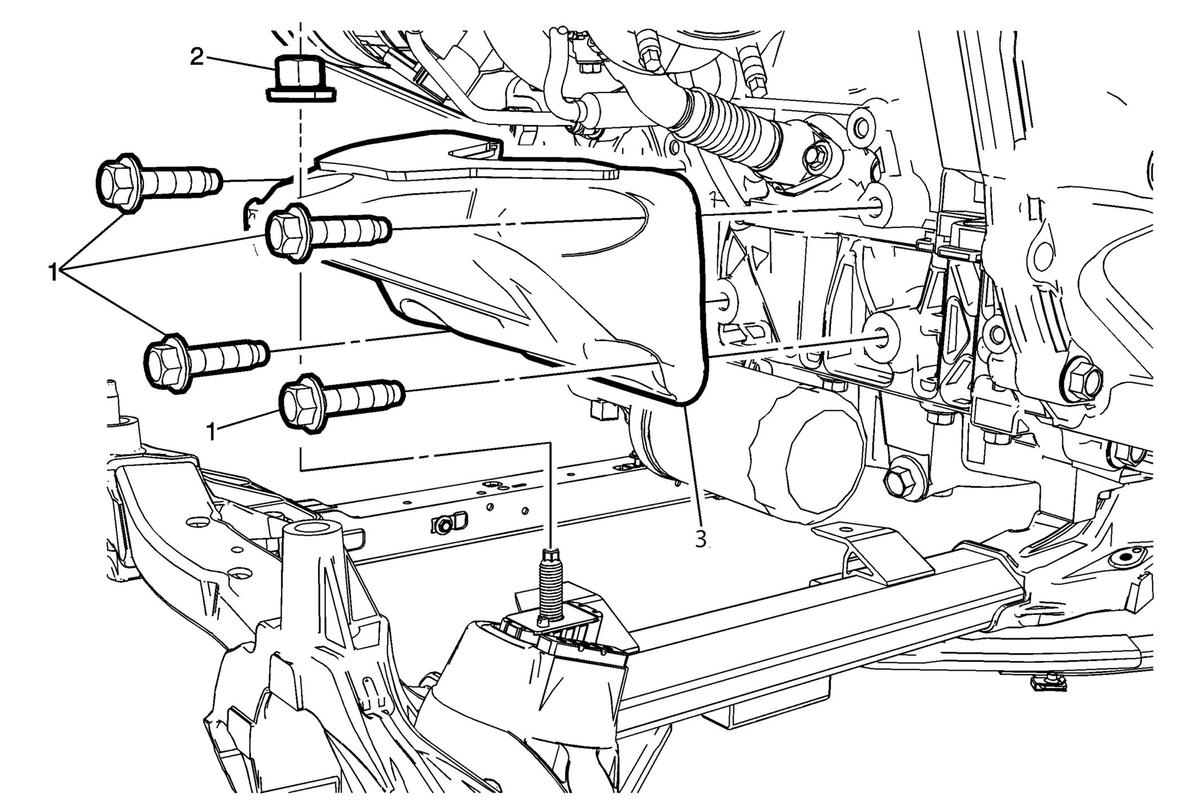

Fig 1: Engine Mount Bracket - Left Side (LF4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Engine Support Fixture (LF4) Front Cradle Shear Plate Replacement (V Series) Remove the right side top engine mount fastener. Drivetrain and Front Suspension Cradle Replacement (LF4) Securely support the drivetrain and front suspension cradle with an adjustable jack and loosen the right side top engine mount fastener and cradle fasteners to allow the cradle to tilt down to allow enough clearance to remove the bracket. Drivetrain and Front Suspension Cradle Replacement (LF4)
1	Engine Mount Bracket Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 58 N.m (43 lb ft)
2	Engine Mount Fastener Tighten 70 N.m (52 lb ft)
3	Washer
4	Engine Mount Bracket NOTE: Engine mount brackets are magnesium. To prevent galvanic corrosion, the bracket includes pressed on spacers on the back side. Even though it is highly unlikely, the pressed on spacers may loosen and fall off during engine mount bracket removal. Ensure the spacers are in place before reinstalling an existing bracket.
