Turbocharger Oil Return Pipe Replacement (Bank 2)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

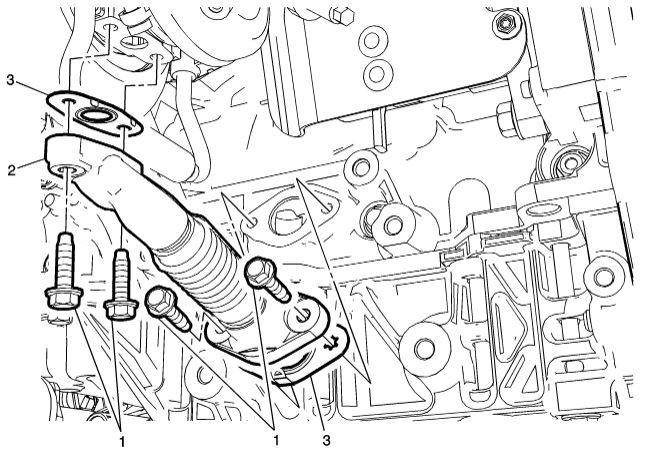

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the left side engine mount bracket. Refer to Engine Mount Bracket Replacement - Left Side (LGX) Engine Mount Bracket Replacement - Left Side (LF4) . |
|
| 1 | Turbocharger Oil Return Pipe Bolts
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Turbocharger Oil Return Pipe |
| 3 | Gaskets
NOTE:
Discard and replace with NEW gaskets. |
