Engine Oil Cooler Adapter Replacement (LF4)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

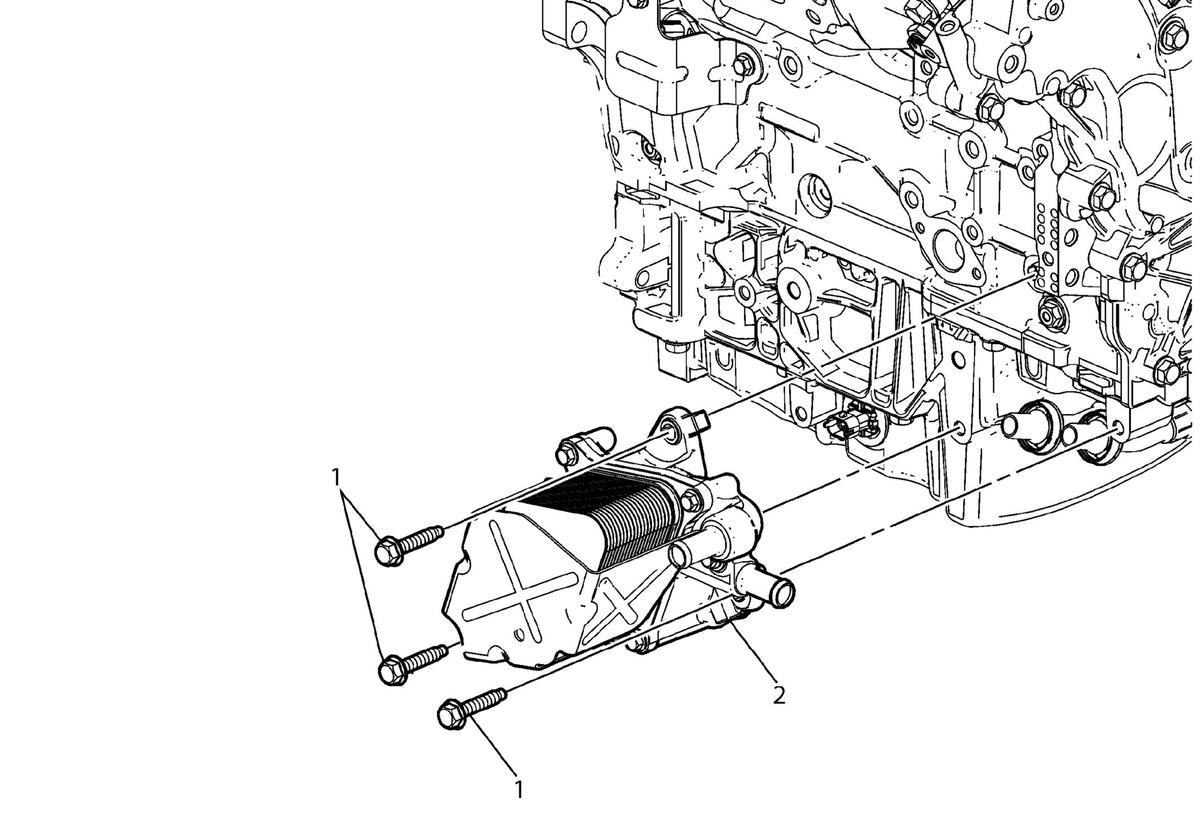

Fig 1: Engine Oil Cooler Adapter (LF4)
GM3649169Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Engine Mount Bracket Replacement - Right Side (LF4)
  2. Turbocharger Coolant Feed Hose Replacement (LF4)
  3. Radiator Outlet Hose Replacement (LF4)
  4. Engine Oil Cooler Outlet Hose Replacement (LF4)
  5. Engine Oil Cooler Inlet Hose Replacement (LF4)
1 Oil Cooler Adapter Assembly Fastener (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
25 N.m (18 lb ft)
2 Engine Oil Cooler Adapter Assembly

Procedure

  1. Remove the oil cooler adapter assembly from the engine block.
  2. Transfer components as necessary.
