Turbocharger Coolant Feed Hose Replacement (LF4)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

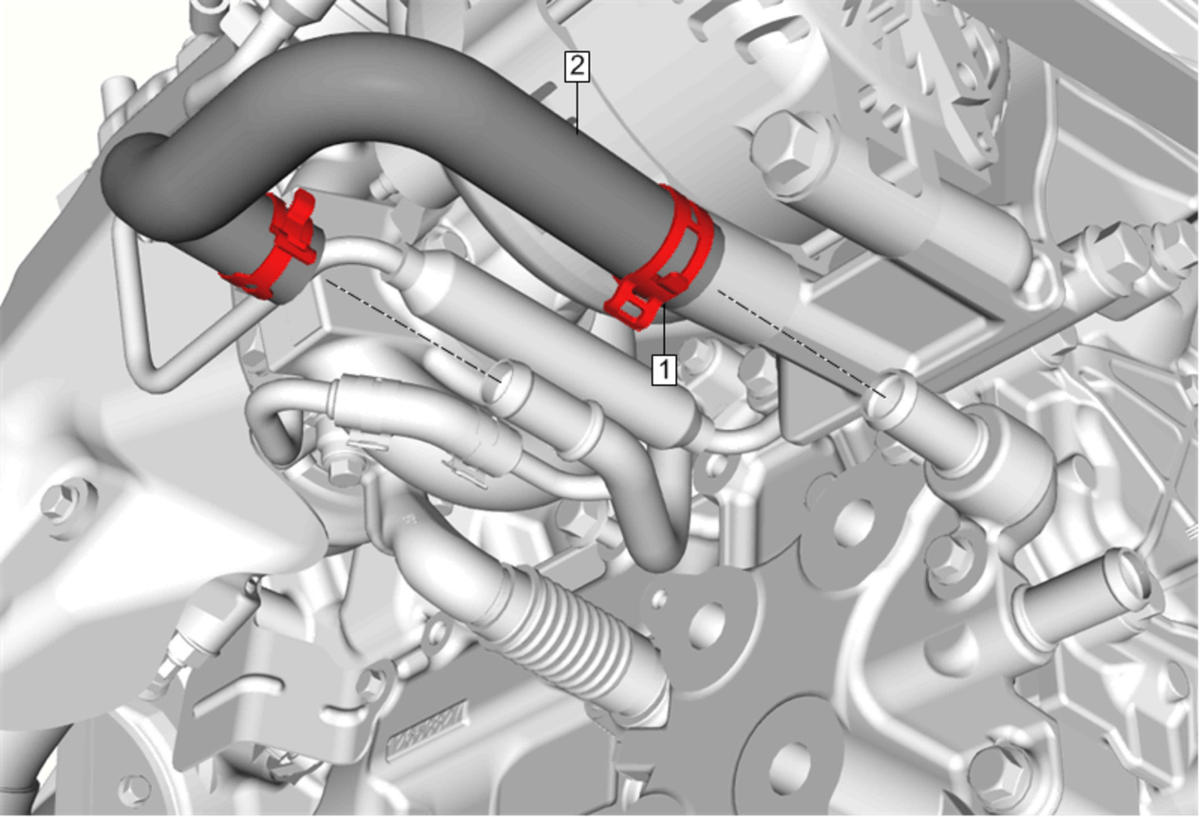

Fig 1: Turbocharger Coolant Feed Hose (LF4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716) Remove the right side engine mount bracket. Engine Mount Bracket Replacement - Right Side (LF4) Engine Oil Cooler Replacement (LF4)
1	Turbocharger Coolant Feed Hose Clamp (Qty: 2) Hose Clamp Replacement Guidelines - Spring Type
2	Turbocharger Coolant Feed Hose

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716)
Remove the right side engine mount bracket. Engine Mount Bracket Replacement - Right Side (LF4)
Engine Oil Cooler Replacement (LF4)

Turbocharger Coolant Feed Hose Clamp (Qty: 2)
Hose Clamp Replacement Guidelines - Spring Type

Turbocharger Coolant Feed Hose
