Engine Oil Cooler Outlet Hose Replacement (LF4)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

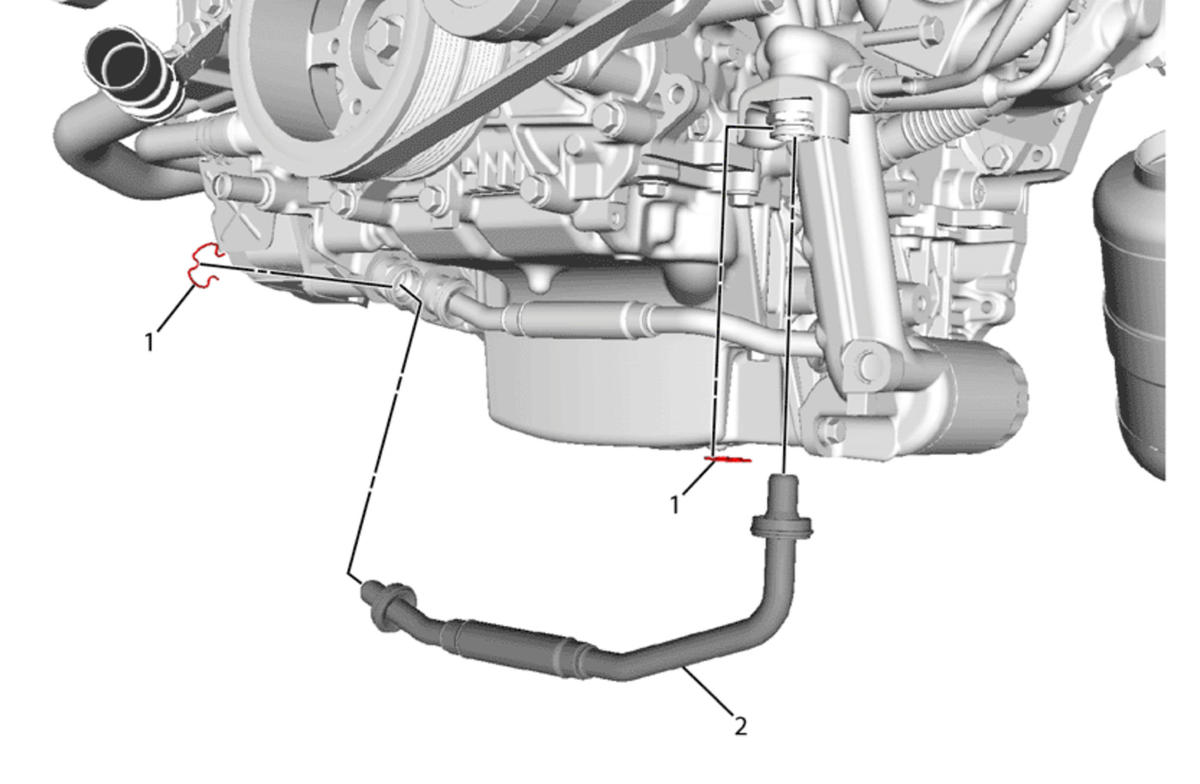

Fig 1: Engine Oil Cooler Outlet Hose (LF4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Drain the engine oil. Refer to Engine Oil and Oil Filter Replacement (LF4) . Remove the electric belt drive rack and pinion steering gear. Refer to Electric Belt Drive Rack and Pinion Steering Gear Replacement (V-Series) .
1	Engine Oil Cooler Hose Retainers
2	Engine Oil Cooler Upper Hose Procedure NOTE: Cap the open ends of the hose to prevent dirt from entering the hose assembly. Remove the hose assembly from bottom of vehicle.

Callout

Component Name

Preliminary Procedure

Drain the engine oil. Refer to Engine Oil and Oil Filter Replacement (LF4) .
Remove the electric belt drive rack and pinion steering gear. Refer to Electric Belt Drive Rack and Pinion Steering Gear Replacement (V-Series) .

Engine Oil Cooler Hose Retainers

Engine Oil Cooler Upper Hose
Procedure

NOTE:

Cap the open ends of the hose to prevent dirt from entering the hose assembly.

Remove the hose assembly from bottom of vehicle.
