Engine Mount Bracket Replacement - Right Side (LF4)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

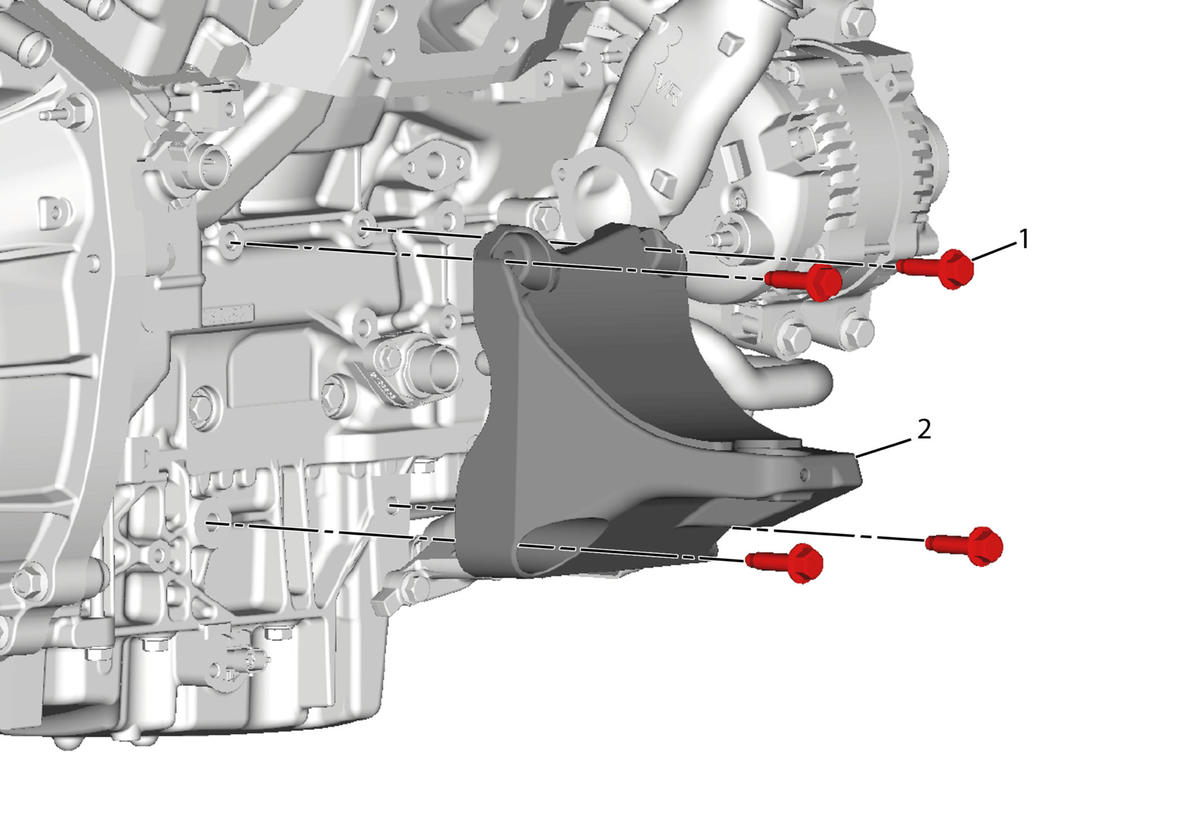

| Callout | Component Name |
|---|---|
| Preliminary Procedure Drivetrain and Front Suspension Cradle Replacement (LF4) |
|
| 1 | Engine Mount Bracket Fastener (Qty: 4)
CAUTION:
Refer to Fastener Caution . Procedure Using the support fixture, lower the engine approximately 1 inch to gain access to the fasteners. Tighten 58 N.m (43 lb ft) |
| 2 | Engine Mount Bracket
NOTE:
Engine mount brackets are magnesium. To prevent galvanic corrosion, the bracket includes pressed on spacers on the back side. Even though it is highly unlikely, the pressed on spacers may loosen and fall off during engine mount bracket removal. Ensure the spacers are in place before reinstalling an existing bracket. |
