Front Floor Console Replacement

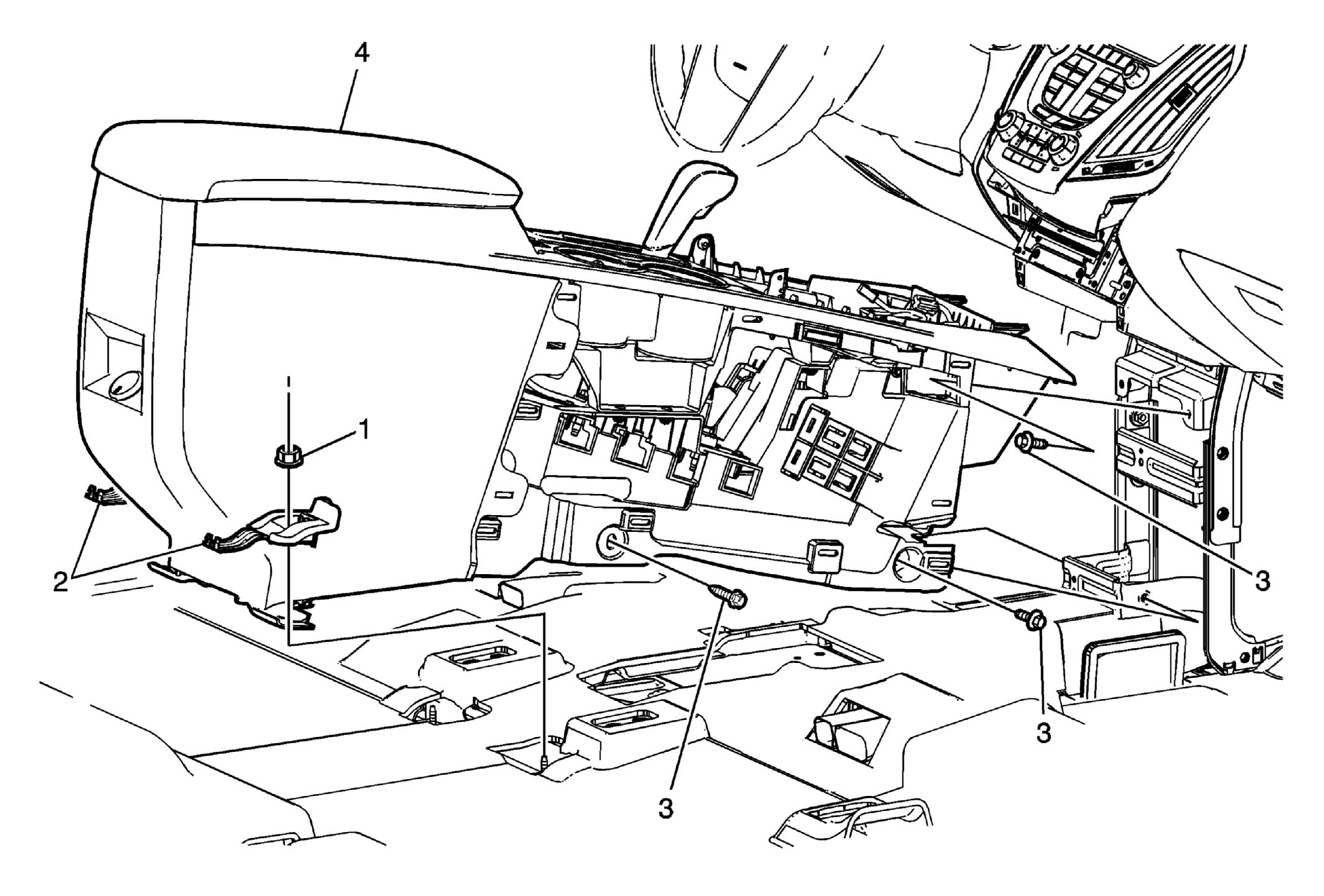

Fig 1: Front Floor Console

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front seats. Refer to Driver or Passenger Seat Removal and Installation . Remove the right and left front floor lower console side finish covers. Refer to Front Floor Lower Console Side Finish Cover Replacement - Right Side (Equinox) Front Floor Lower Console Side Finish Cover Replacement - Right Side (Terrain) , and Front Floor Lower Console Side Finish Cover Replacement - Left Side (Equinox) Front Floor Lower Console Side Finish Cover Replacement - Left Side (Terrain) . Remove the instrument panel right and left lower extensions. Refer to Instrument Panel Lower Extension Replacement (Equinox) Instrument Panel Lower Extension Replacement (Terrain) . Remove the instrument panel lower extension accessory bezel. Refer to Instrument Panel Lower Extension Accessory Bezel Replacement (Equinox) Instrument Panel Lower Extension Accessory Bezel Replacement (Terrain) . Disconnect the range selector lever cable from the transmission control assembly. Refer to Range Selector Lever Cable Replacement , or Range Selector Lever Cable Replacement
1	Front Floor Console Nuts (Qty: 2) Procedure Use a suitable flat bladed tool to open the front floor console fastener covers in order to expose the console nuts. CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Floor Console Fastener Covers
3	Front Floor Console Bolts (Qty: 6) Tighten 9 N.m (80 lb in)
4	Front Floor Console Assembly Procedures Disconnect the electrical connections. When replacing the front floor console assembly, transfer all necessary components.
