Instrument Panel Lower Extension Accessory Bezel Replacement (Terrain)

Preliminary Procedure

1. Set the parking brake.
2. Move the shift control knob to the most rearward position.
3. Remove the right and left instrument panel lower extensions. Refer to Instrument Panel Lower Extension Replacement (Terrain) .
4. Remove the right and left front floor console side finish cover. Refer to Front Floor Lower Console Side Finish Cover Replacement - Right Side (Terrain) , and Front Floor Lower Console Side Finish Cover Replacement - Left Side (Terrain) .

Procedures

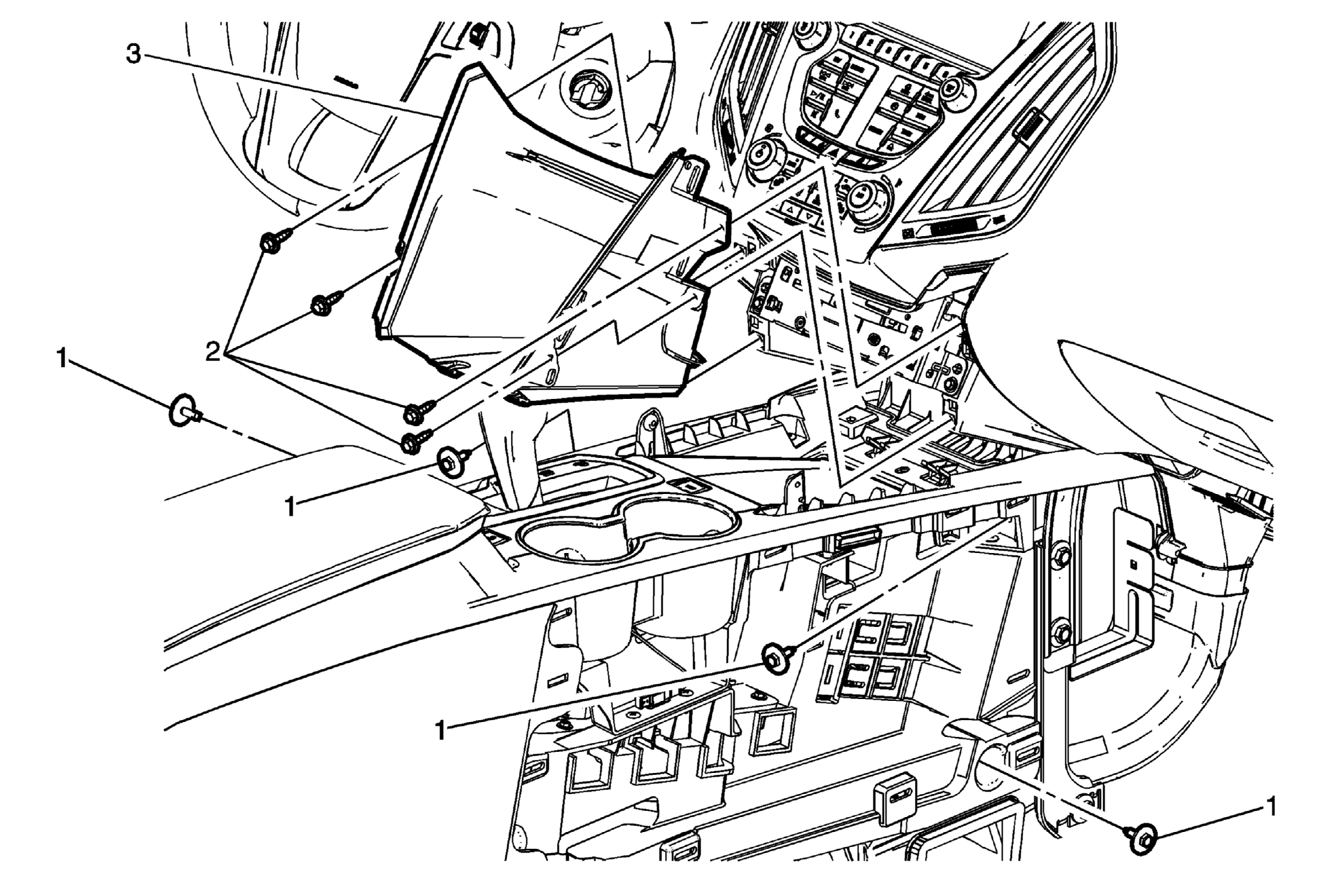

1. Push downward on the front of the floor console to allow enough clearance for the removal of the accessory bezel.
2. Rotate the bottom of the accessory bezel toward the rear of the vehicle, so the top of the bezel comes out last.
3. Disconnect the electrical connections.
4. When replacing the instrument panel lower extension accessory bezel, transfer components as necessary.
