Instrument Panel Lower Extension Replacement (Terrain)

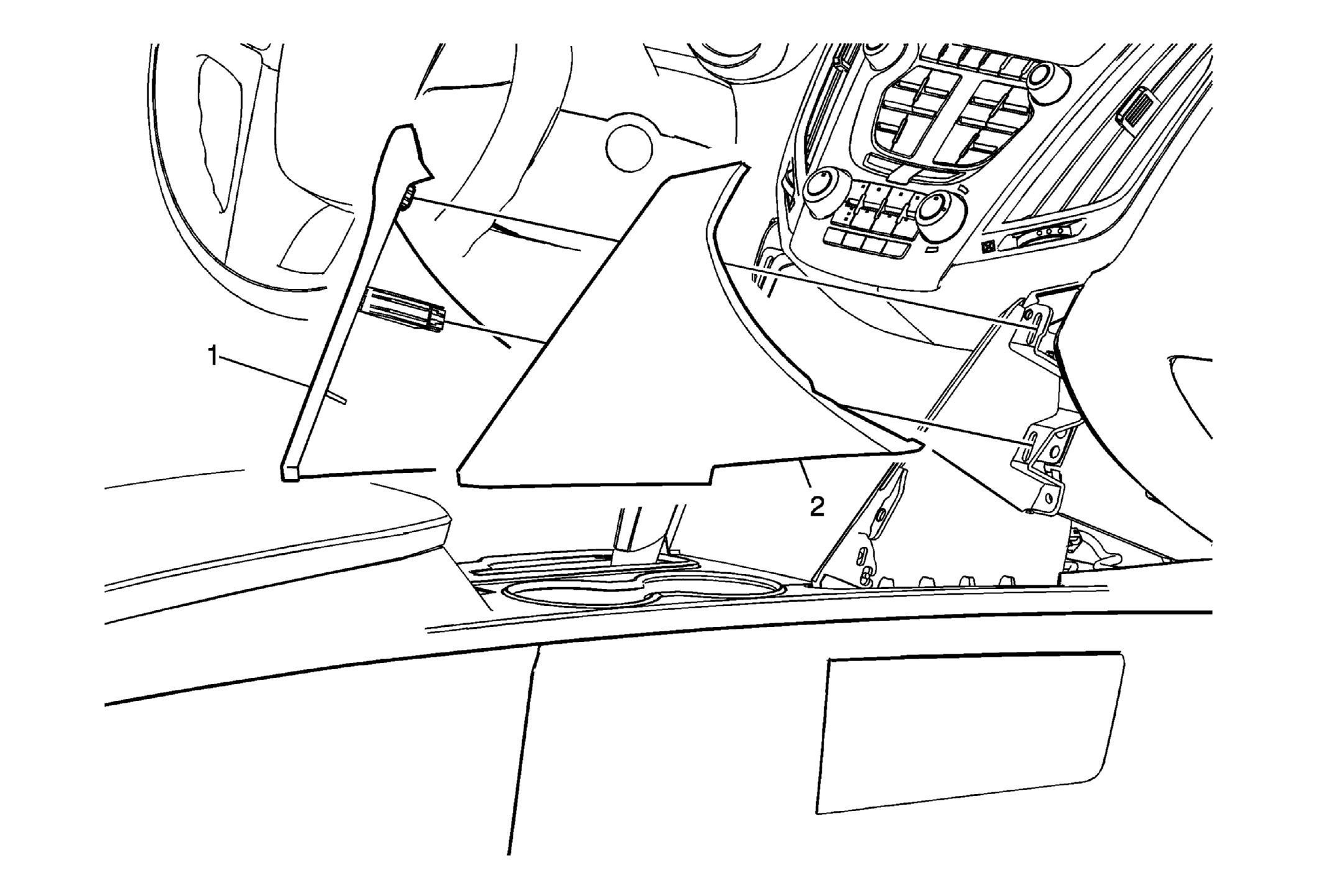

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Lower Extension (Left) Procedure Use a flat bladed plastic trim tool in order to release the retainer clips securing the left instrument panel lower extension to the instrument panel assembly. |
| 2 | Instrument Panel Lower Extension (Right) Procedure Use a flat bladed plastic trim tool in order to release the retainer clips securing the right instrument panel lower extension to the instrument panel assembly. |
