Front Floor Lower Console Side Finish Cover Replacement - Right Side (Terrain)

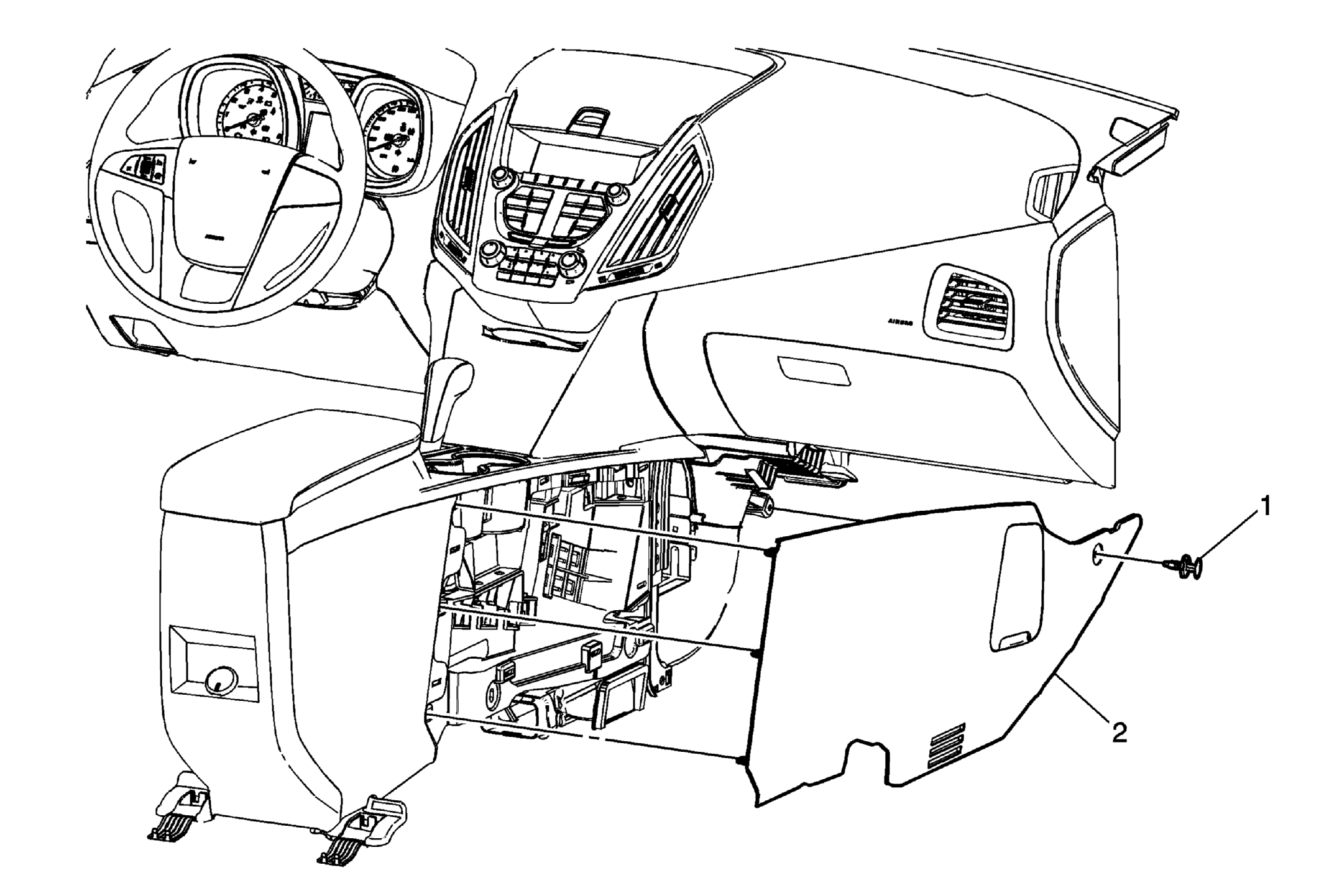

Fig 1: Front Floor Lower Console Side Finish Cover - Right Side (Terrain)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Move the right front seat to the full rearward position.
1	Push Pin Fastener
2	Front Floor Lower Console Side Finish Cover - Right Procedure  Grasp the side finish cover and pull outward releasing the retainer clips securing the side finish panel to the console assembly.
