Front Floor Console Accessory Trim Plate Replacement

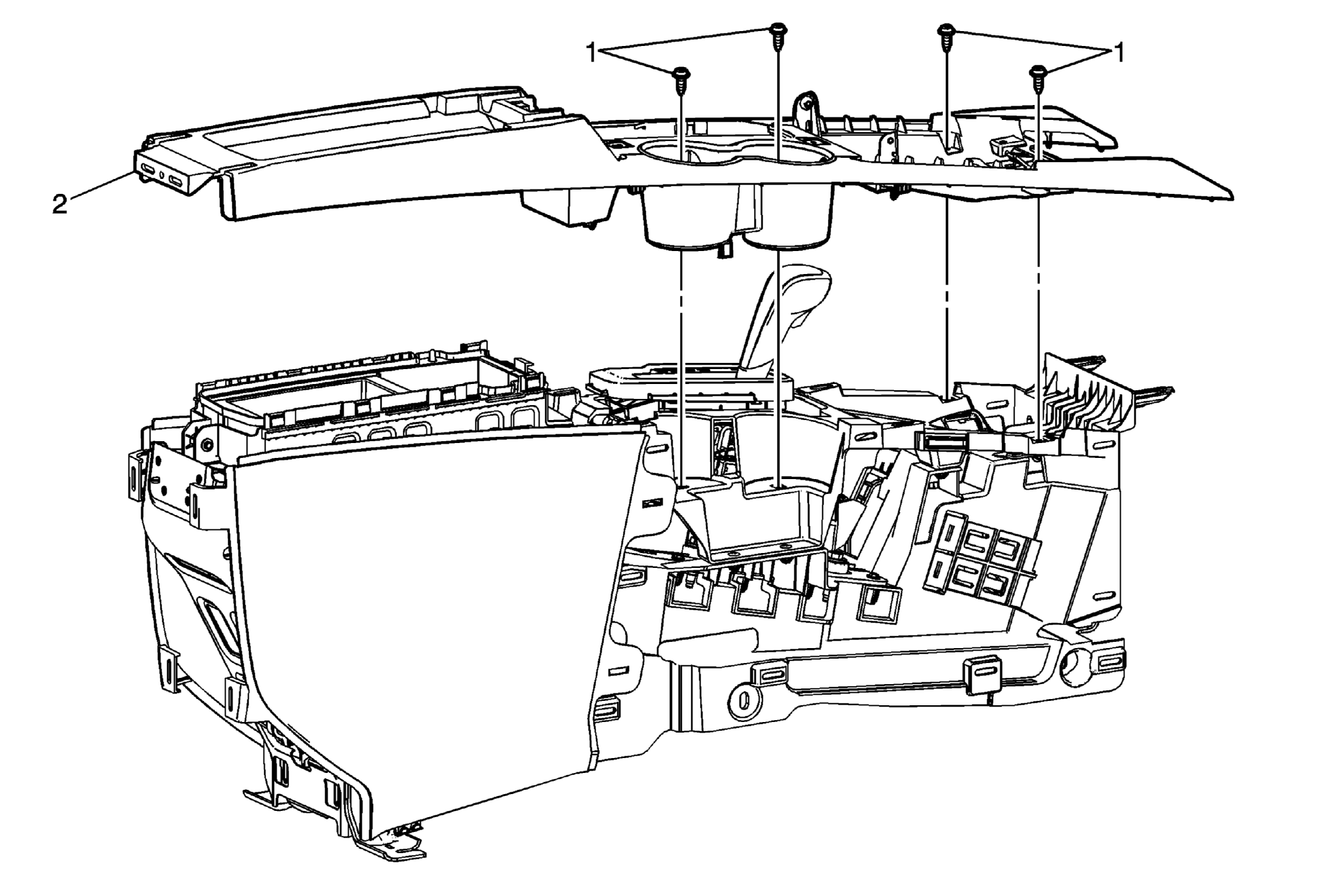

Fig 1: Front Floor Console Accessory Trim Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console. Refer to Front Floor Console Replacement . Remove front floor console transmission shift opening trim plate. Refer to Front Floor Console Transmission Shift Opening Trim Plate Replacement . Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement . Remove the front floor console armrest. Refer to Front Floor Console Armrest Replacement . Remove the cupholder liner.
1	Front Floor Console Accessory Trim Plate Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Floor Console Accessory Trim Plate Procedures Grasp the front floor console accessory trim plate and lift upward disengaing the retainer clips securing the trim plate to the console assembly. Disconnect the electrical connections. When replacing the front floor console accessory trim plate, transfer all neccessary components.

Callout

Component Name

Preliminary Procedure

Remove the front floor console. Refer to Front Floor Console Replacement .
Remove front floor console transmission shift opening trim plate. Refer to Front Floor Console Transmission Shift Opening Trim Plate Replacement .
Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement .
Remove the front floor console armrest. Refer to Front Floor Console Armrest Replacement .
Remove the cupholder liner.

Front Floor Console Accessory Trim Plate Fasteners (Qty: 4)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Floor Console Accessory Trim Plate

Procedures

Grasp the front floor console accessory trim plate and lift upward disengaing the retainer clips securing the trim plate to the console assembly.
Disconnect the electrical connections.
When replacing the front floor console accessory trim plate, transfer all neccessary components.
