Front Floor Console Armrest Replacement

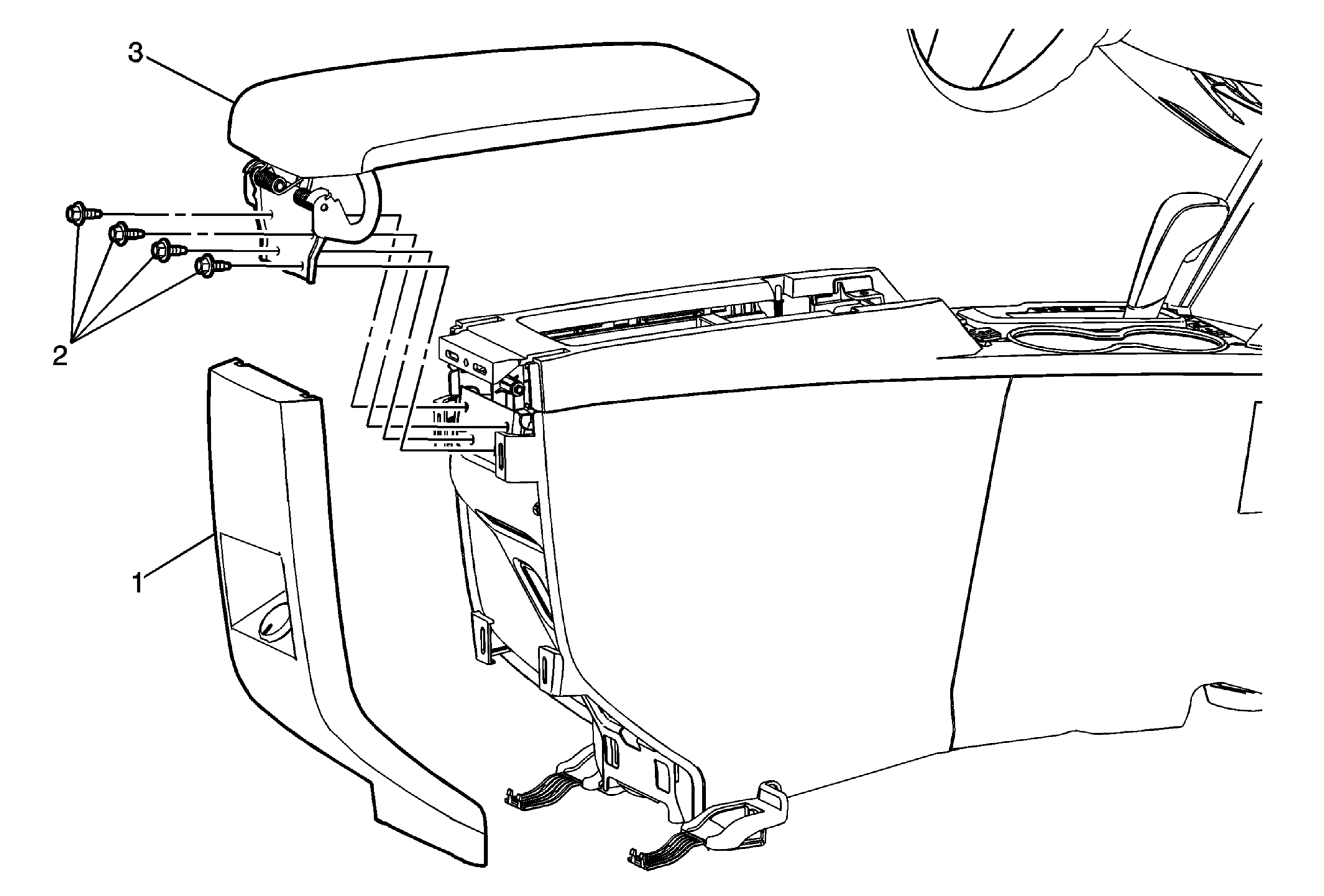

Fig 1: Front Floor Console Armrest

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Floor Console Rear Cover Refer to Front Floor Console Rear Cover Replacement .
2	Front Floor Console Armrest Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten:  2.5 N.m (22 lb in)
3	Front Floor Console Armrest Assembly
