Front Floor Console Rear Cover Replacement

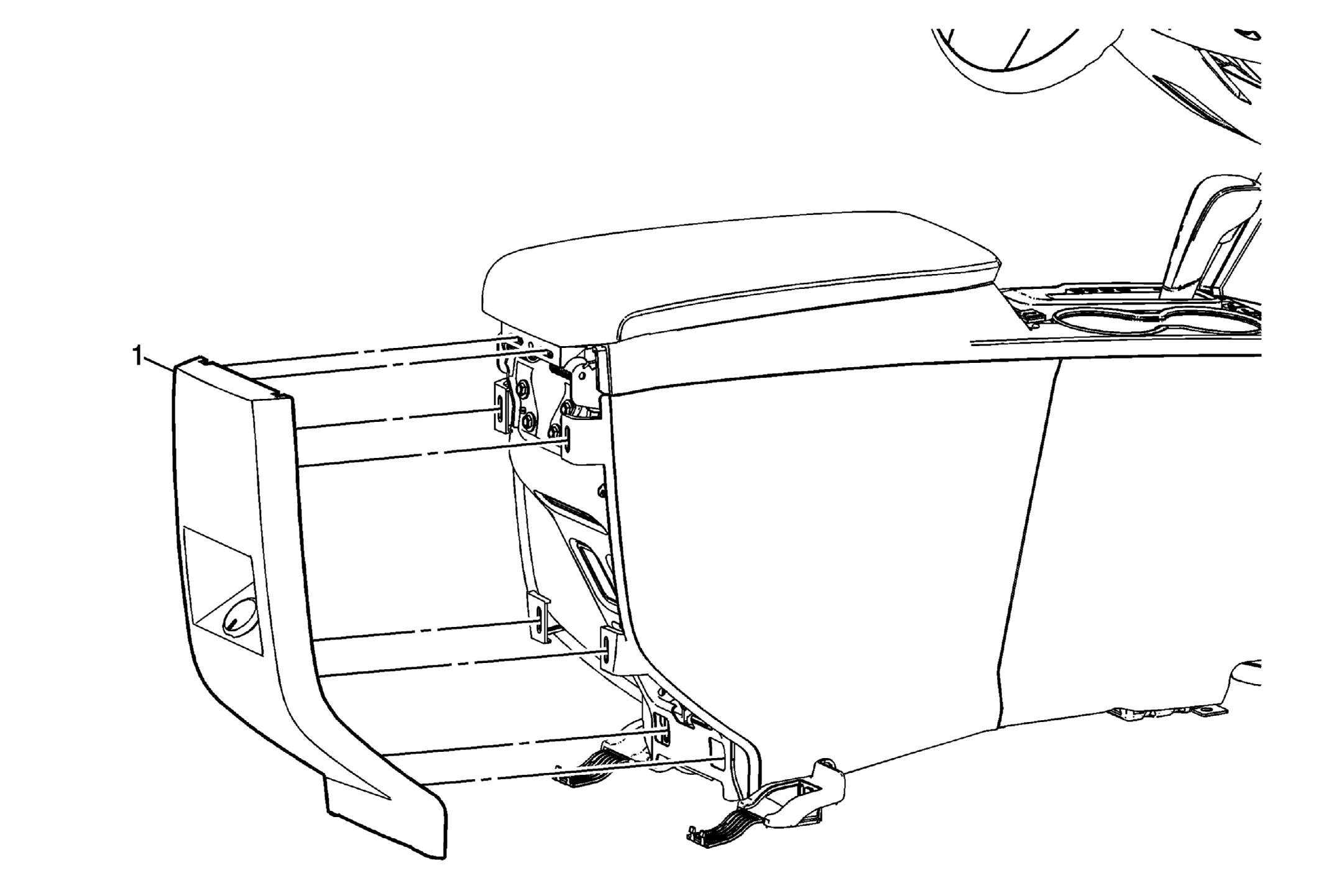

Fig 1: Front Floor Console Rear Cover
GM2242399Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Floor Console Rear Cover

Procedures

  1. Grasp the console rear cover and pull it rearward away from the console assembly.
  2. Disconnect the electrical connections, if applicable.
  3. When replacing the front floor console rear cover, transfer all necessary components.
