Rear Window Panel Trim Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

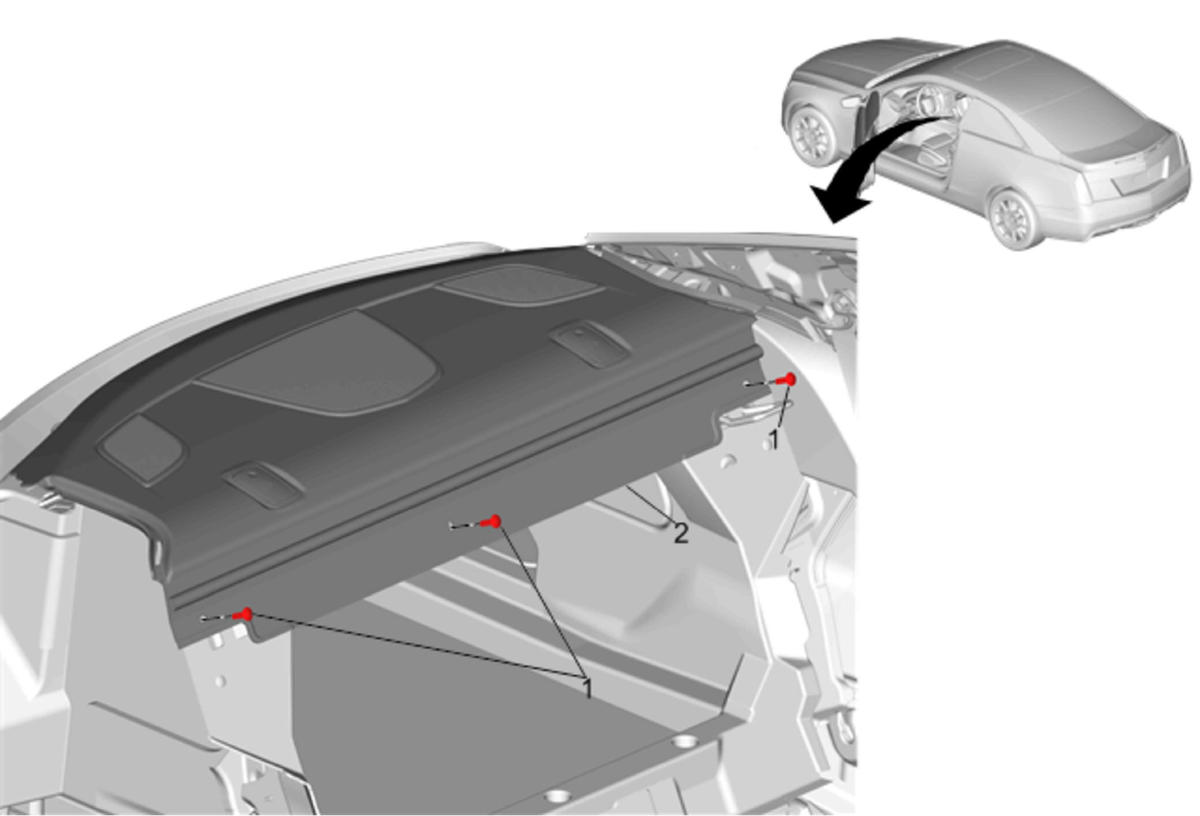

Fig 1: Rear Window Panel Trim Assembly (Coupe)
GM3781477Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Coupe) .
  2. If equipped with AM9 (split folding seat), remove the rear seat back cushion bolster. Refer to Rear Seat Back Bolster Replacement (Coupe) .
  3. If not equipped with AM9 (non folding seat), remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (40% Seat with AM9)Rear Seat Back Cushion Removal and Installation (60% Seat with AM9)Rear Seat Back Cushion Removal and Installation (without AM9) .
1 Rear Window Trim Panel Retainer (Qty: 3)
2 Rear Window Trim Panel Assembly

Procedure

  1. Lift up on the rear window panel to release the retainers under the forward portion of the panel.
  2. With the aid of an assistant, guide the rear window panel forward in the vehicle and upwards to clear the speaker system.
  3. When replacing the rear window panel trim assembly, transfer all necessary components.
  4. Ensure the rear window trim panel feet are seated into the rear window sheet metal drain shoe.
