Quarter Lower Rear Trim Panel Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

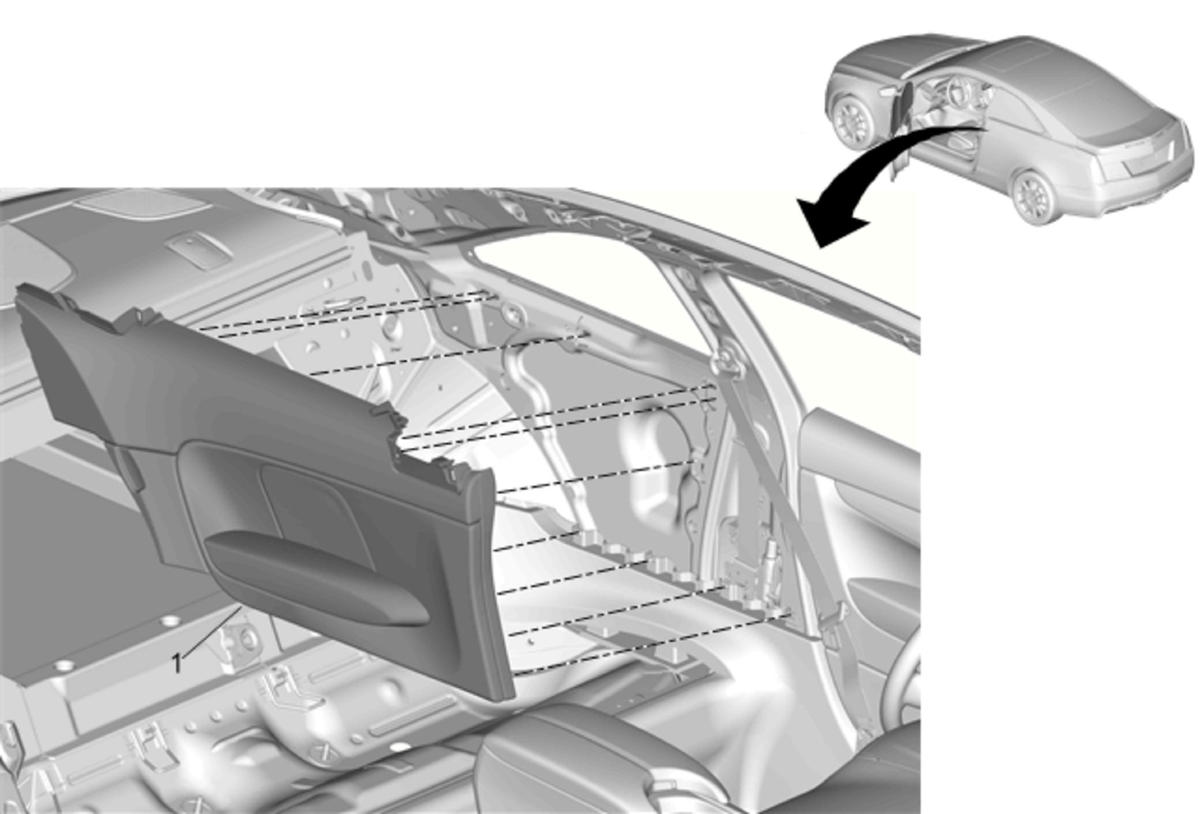

Fig 1: Quarter Lower Rear Trim Panel Assembly (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat back bolster. Refer to Rear Seat Back Bolster Replacement (Coupe) . Remove the quarter window trim finish panel. Refer to Quarter Window Trim Finish Panel Replacement (Coupe) .
1	Quarter Lower Rear Trim Panel Assembly Procedure Use the appropriate plastic trim tool to aid in the removal. Reposition and disconnect the electrical.

Callout

Component Name

Preliminary Procedures

Remove the rear seat back bolster. Refer to Rear Seat Back Bolster Replacement (Coupe) .
Remove the quarter window trim finish panel. Refer to Quarter Window Trim Finish Panel Replacement (Coupe) .

Quarter Lower Rear Trim Panel Assembly

Procedure

Use the appropriate plastic trim tool to aid in the removal.
Reposition and disconnect the electrical.
