Radiator Grille Replacement (Acadia)

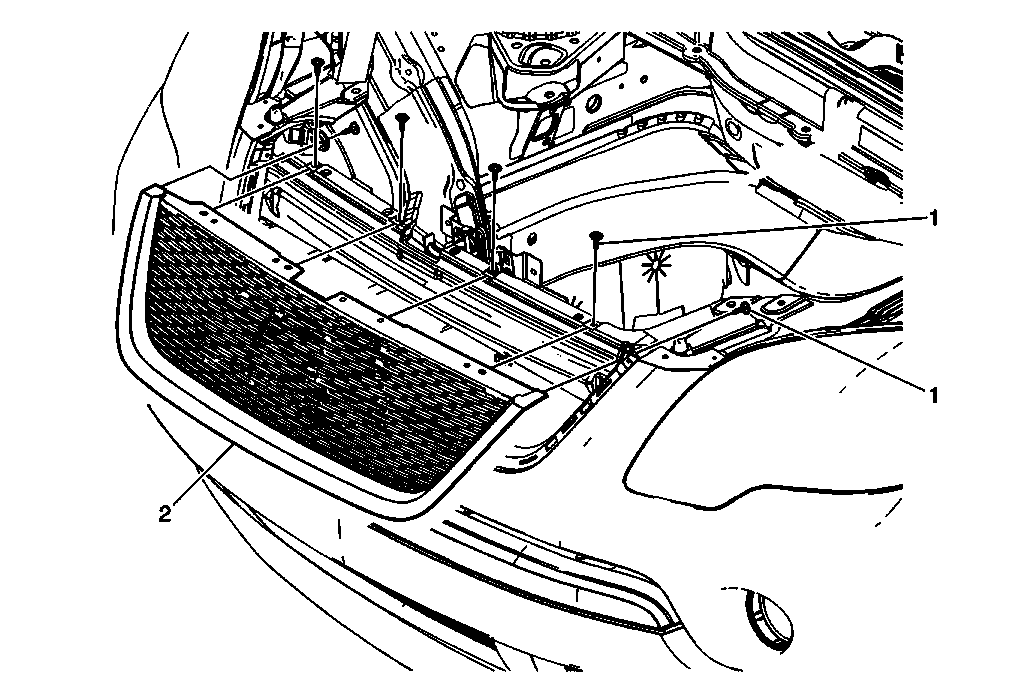

Fig 1: Identifying Fascia Grille

GM1854897

Courtesy of GENERAL MOTORS CORP.

Radiator Grille Replacement (Acadia)

Callout

Component Name

Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Enclave) , Front Bumper Fascia Replacement (Acadia) , Front Bumper Fascia Replacement (Traverse) .

1

Radiator Grille Screw (Qty: 6)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Radiator Grille Assembly

Procedure

Release the 12 integral tabs using a small flat-bladed tool securing the radiator grille to the front bumper fascia.
Pull the grille assembly outward from the front bumper fascia and remove.
Place the grille assembly on a clean protected surface.
Transfer the radiator grille emblem/nameplate. Refer to Radiator Grille Emblem/Nameplate Replacement (Enclave) , Radiator Grille Emblem/Nameplate Replacement (Acadia) .
