Driver or Passenger Seat Back Cushion Frame Replacement

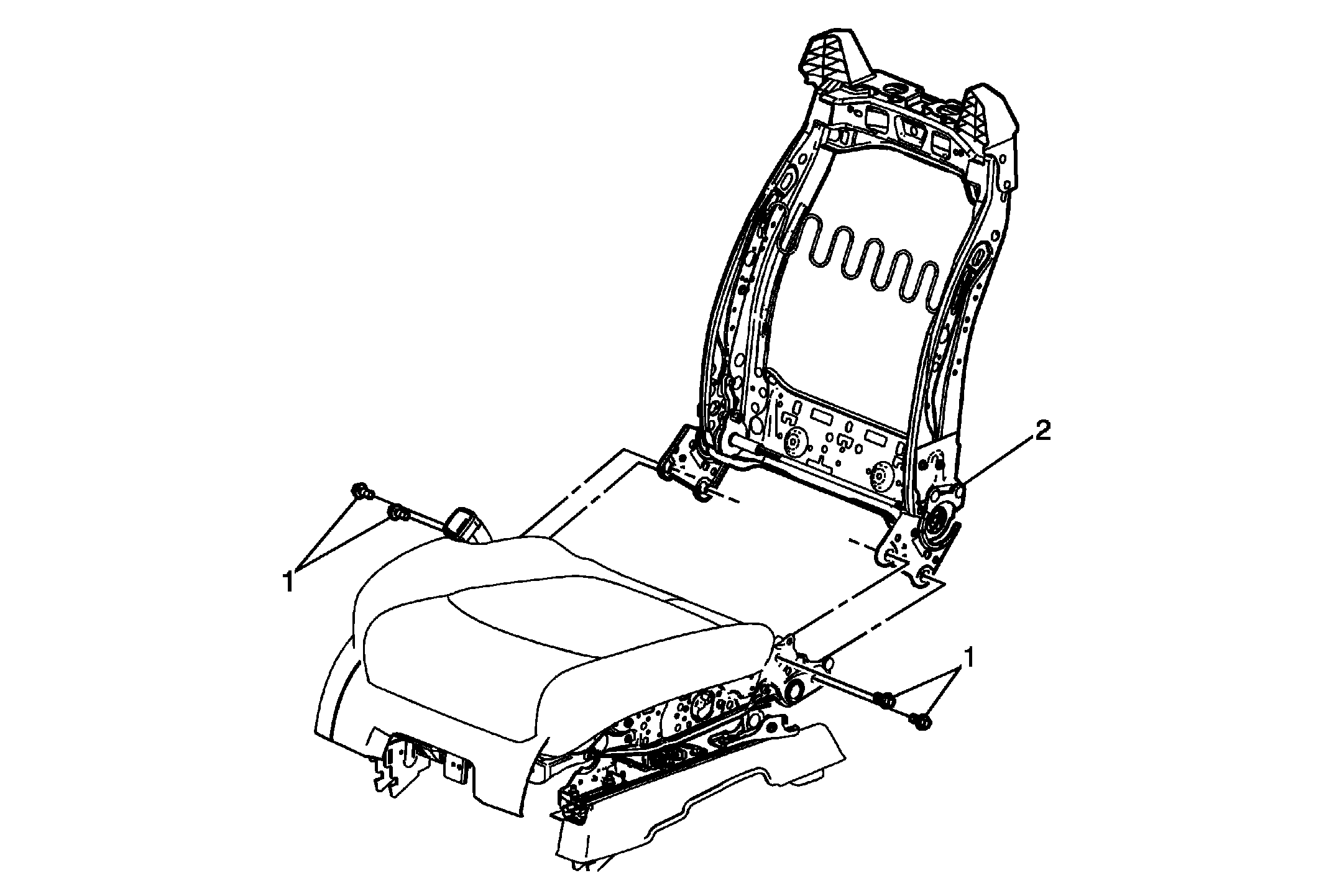

Fig 1: Identifying Front Seat Back Frame
GM1853837Courtesy of GENERAL MOTORS CORP.
Driver or Passenger Seat Back Cushion Frame Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the front seat. Refer to Bucket Seat Replacement .
  2. Remove the front seat back recliner outer trim panel. Refer to Front Seat Back Recliner Outer Trim Panel Replacement .
  3. Remove the front seat back recliner inner trim panel. Refer to Front Seat Back Recliner Inner Trim Panel Replacement .
  4. Remove the front seat back cushion cover and pad. Refer to Front Seat Back Cushion Cover and Cushion Pad Replacement .
  5. Remove the inflatable restraint side impact module. Refer to Driver or Passenger Seat Side Inflatable Restraint Module Replacement .
  6. Remove the lumbar system. Refer to Driver or Passenger Seat Lumbar Support Replacement .
1 Front Seat Back Cushion Frame Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
50 N.m (37 lb ft)
2 Front Seat Back Cushion Frame
Procedure
Transfer components as necessary.
