Driver or Passenger Seat Lumbar Support Replacement
Driver or Passenger Seat Lumbar Support Replacement

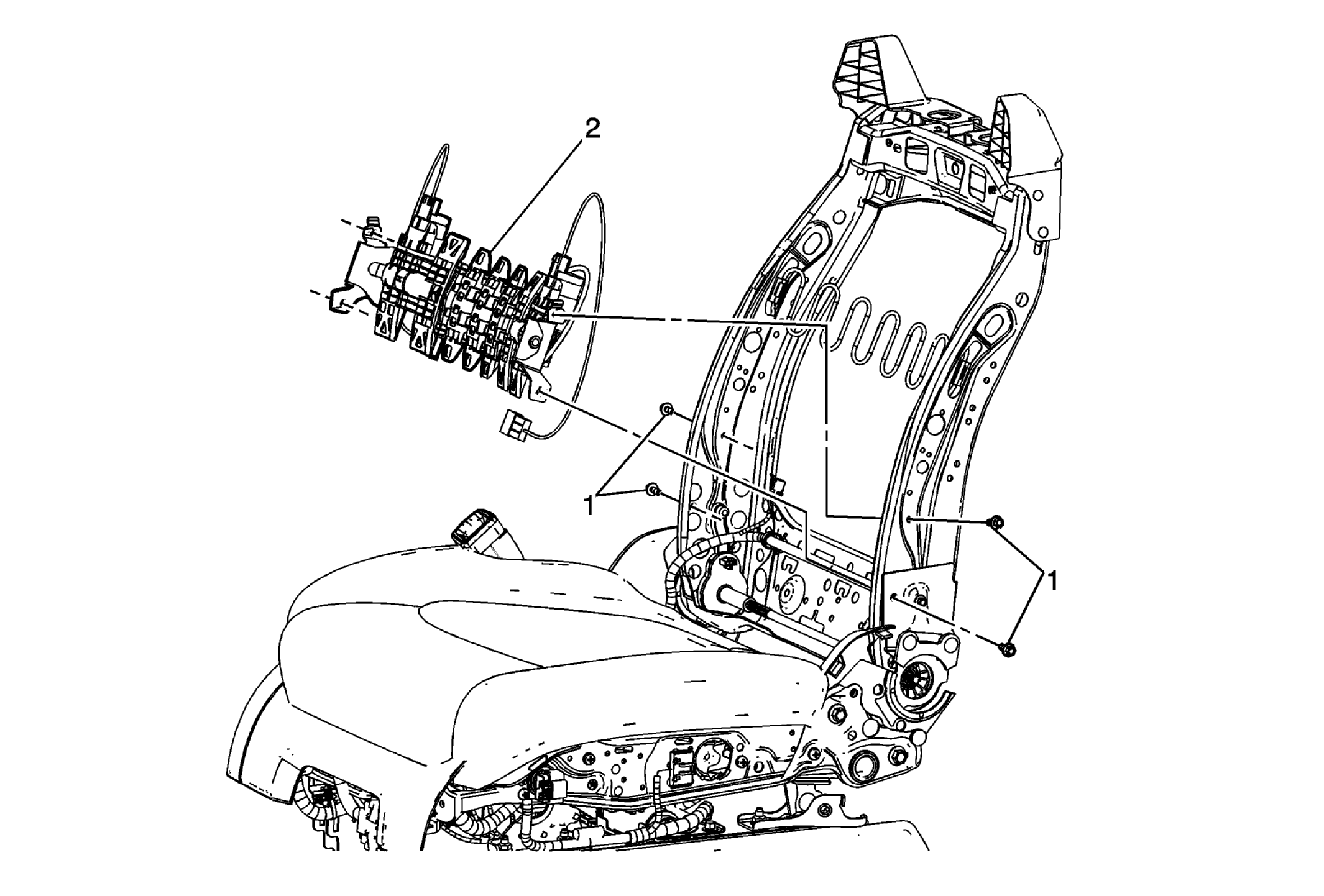

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front seat back cushion cover j-clips and reposition the seat back cushion cover to gain access to the lumbar support and bolts. |
|
| 1 | Front Seat Lumbar Assembly Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Front Seat Lumbar Assembly Procedure Disconnect the electrical connector. |
