Front Bumper Fascia Emblem/Nameplate Replacement (Traverse)

Fig 1: Identifying Rocker Panel Rear Molding (Traverse)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia in order to access and remove the heat stakes from the emblem assembly. Refer to Front Bumper Fascia Replacement (Enclave) , Front Bumper Fascia Replacement (Acadia) , Front Bumper Fascia Replacement (Traverse) .

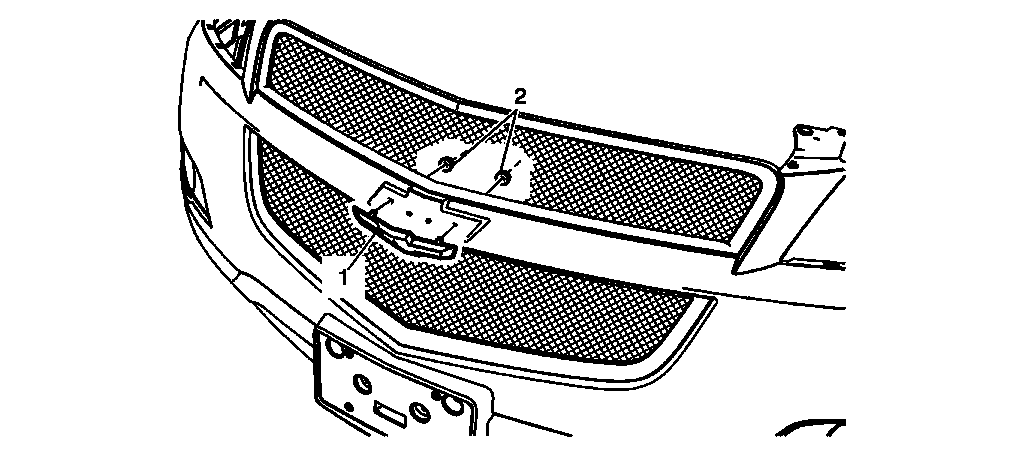

1	Front Bumper Fascia Emblem Assembly Procedure Place the front bumper fascia face down on a clean protected surface. Cut the heat stakes from the rear side of the emblem assembly. Remove the emblem from the bumper fascia. Place the new emblem locator pins to the holes in the front bumper fascia. Hold the emblem firmly against the front bumper fascia.
2	Front Bumper Fascia Emblem Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten Hand Tighten the nuts.

Callout

Component Name

Preliminary Procedure
Remove the front bumper fascia in order to access and remove the heat stakes from the emblem assembly. Refer to Front Bumper Fascia Replacement (Enclave) , Front Bumper Fascia Replacement (Acadia) , Front Bumper Fascia Replacement (Traverse) .

Front Bumper Fascia Emblem Assembly

Procedure

Front Bumper Fascia Emblem Nut (Qty: 2)

CAUTION:

Tighten
Hand Tighten the nuts.
