Headlamp Capsule Replacement (Enclave TVC TSH)

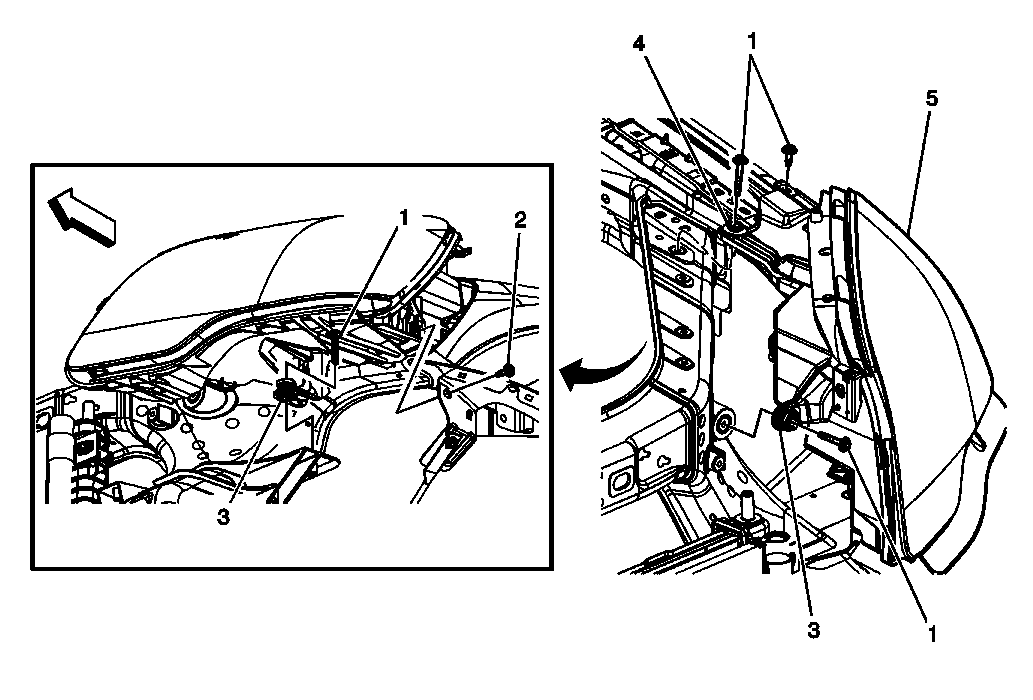

Fig 1: Headlamp Capsule (Enclave TVC TSH)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: The high intensity discharge system produces high voltage and current. In order to reduce the risk of severe shocks and burns, the battery negative cable must be disconnected any time service work is being performed on or around the high intensity discharge system. WARNING: The high intensity discharge system produces high voltage and current. To reduce the risk of severe shocks and burns: Never open the high intensity discharge system ballast or the arc tube assembly starter. Never probe between the high intensity discharge system ballast output connector and the arc tube assembly. Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Enclave) , Front Bumper Fascia Replacement (Acadia) , Front Bumper Fascia Replacement (Traverse) .
1	Headlamp Assembly Bolts (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Fender Brace to Headlamp Screw Tighten 2 N.m (18 lb in)
3	Headlamp Horizontal and Vertical Adjustment Nuts Procedure Set the cam adjusting nuts to the nominal setting of 6 turns off fully seated prior to installing the new headlamp assembly. Check the front bumper fascia to headlamp finish fit and adjust the cam nuts accordingly to achieve an even fit.
4	Headlamp Vertical Adjuster Bolt Bushing
5	Headlamp Capsule Assembly Procedure Gently pull forward the headlamp capsule assembly. Disconnect the forward lamp harness electrical connector from the headlamp. Remove the headlamp capsule from the vehicle.
